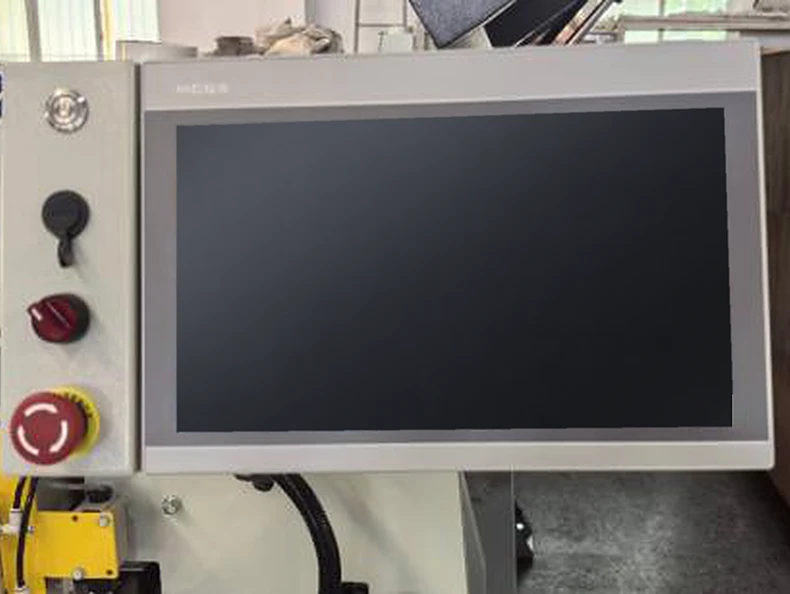

Touch screen control panelEasy, self-explanatory view of every unit and its function, with error messages shown on screen.

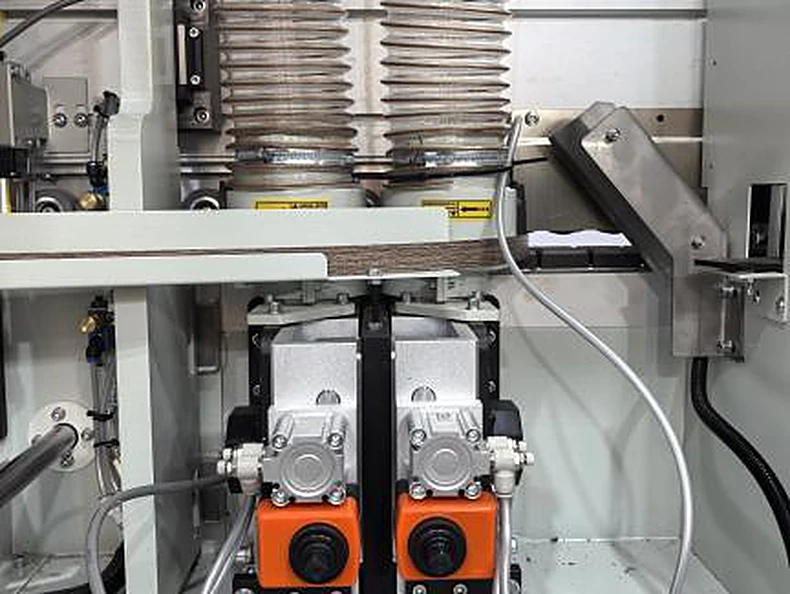

Diamond pre-milling unitDiamond knives remove burrs and flatten the panel edge so the band bonds perfectly and firmly. Feeding fence with micrometric adjustment and numerical dial.

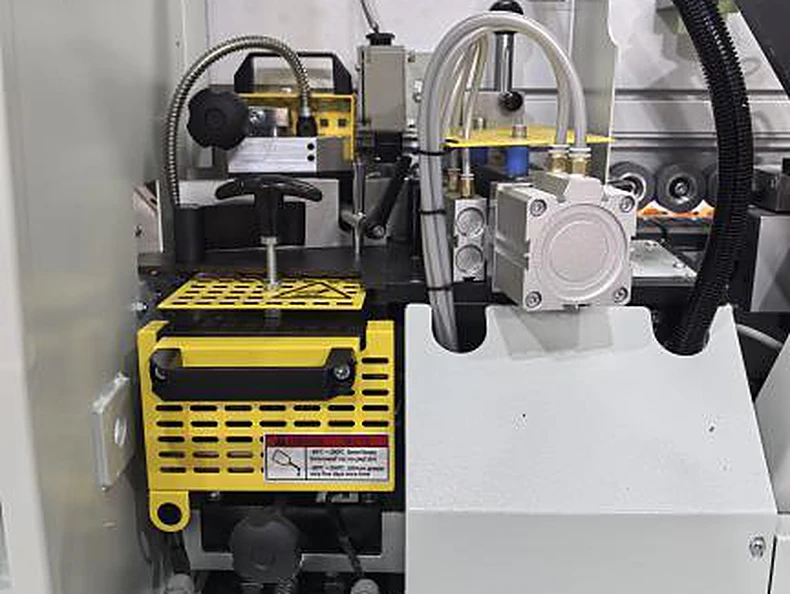

Teflon-coated glue potReaches operating temperature in only 15 minutes, with a Teflon-coated glue pot and quick-change system.

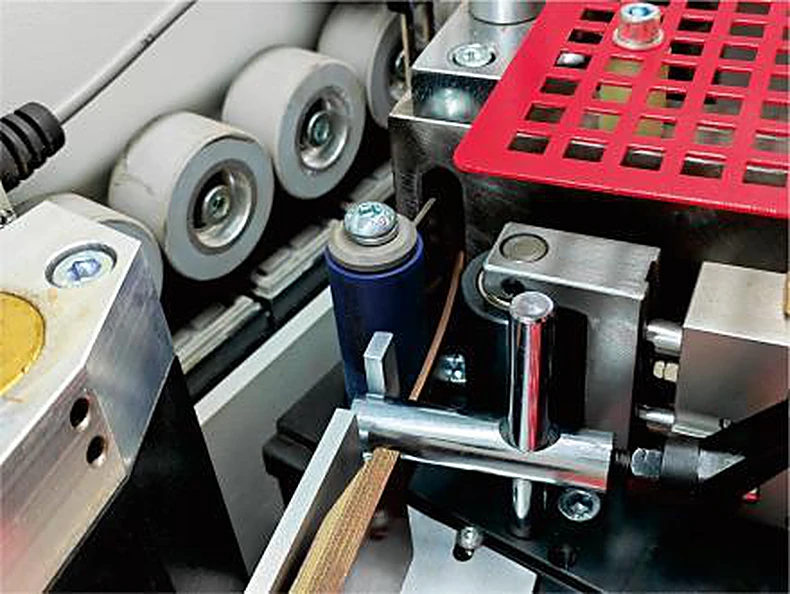

Edge feed, guillotine and press rollersTakes coiled edge band from 0.4 to 3 mm thick for panels up to 50 mm thick.

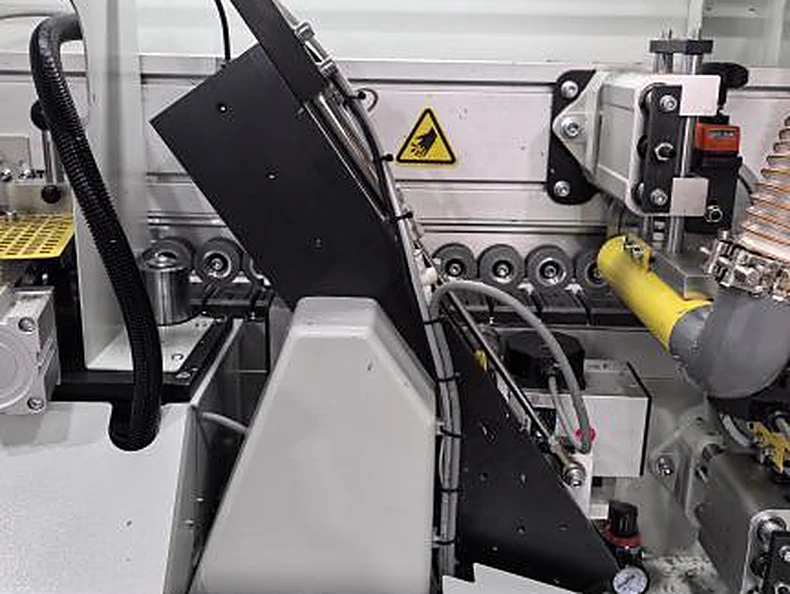

End cutting unitTwo high-speed motors cut both ends of the band for stable, perfectly finished ends.

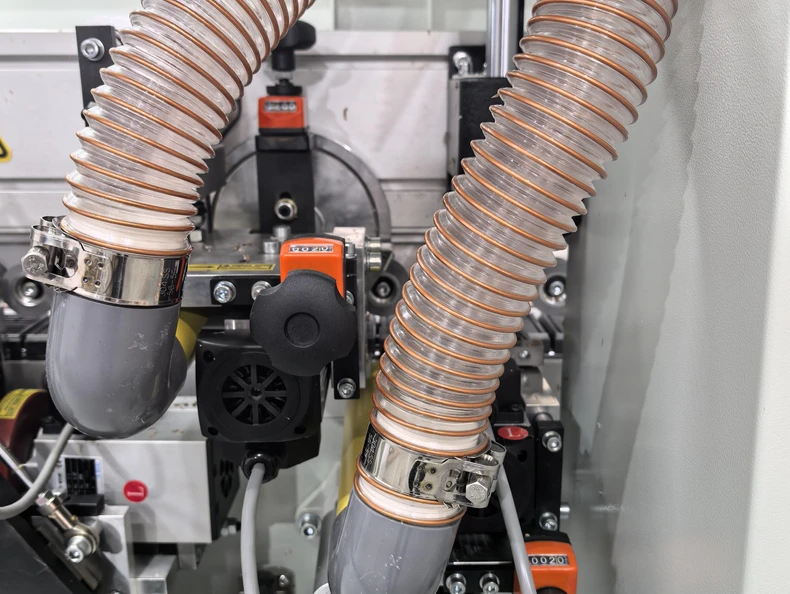

Heavy-duty fine trimming unitThe R-knife trims the excess band into rounded edges; a heavy-duty unit with a very stable structure.

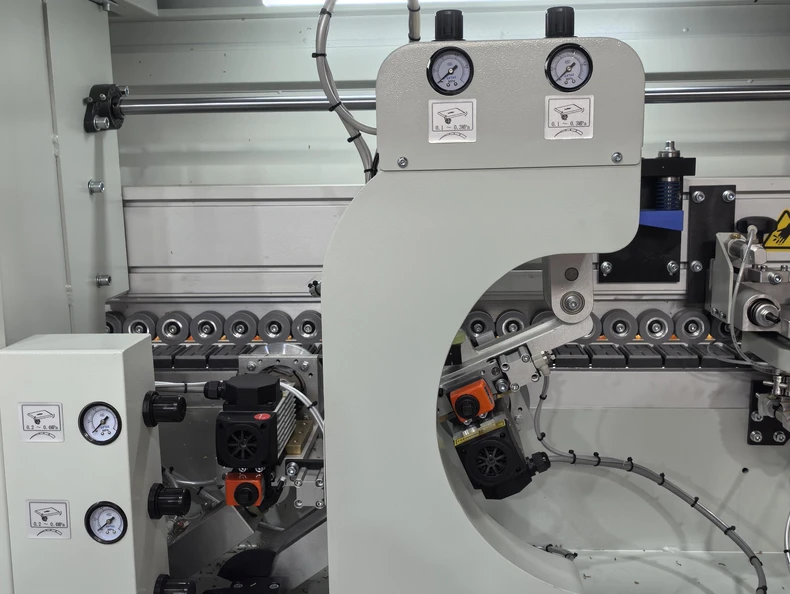

Corner rounding unitTwo motors round the front and rear corners on straight, chamfered and post-formed panels.

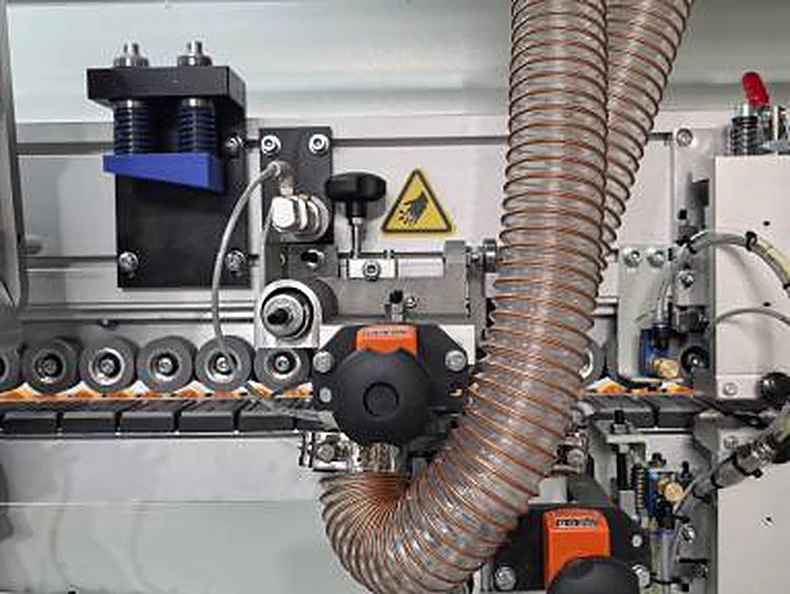

Radius scraping unitA super-carbide R-knife scrapes away fine lines on the band, leaving it round and smooth.

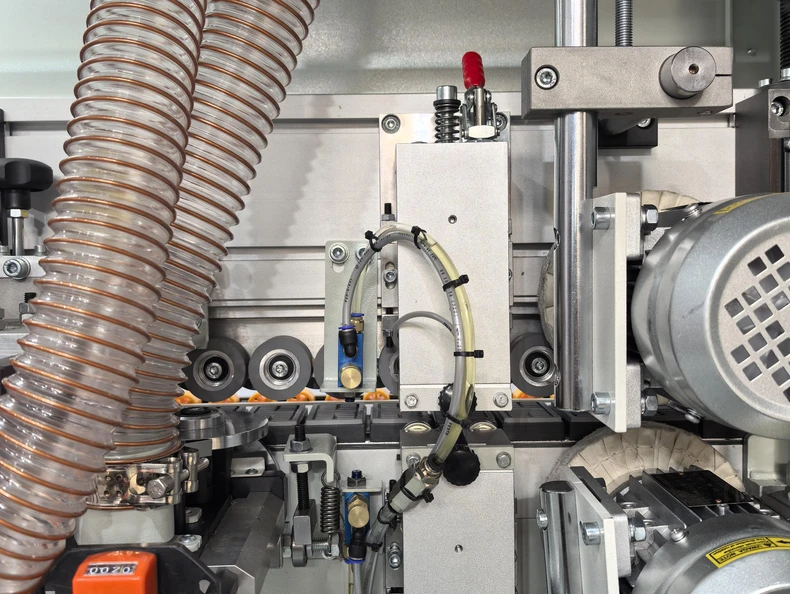

Glue scraping unitRemoves glue from the panel surface for a smoother, cleaner finish.

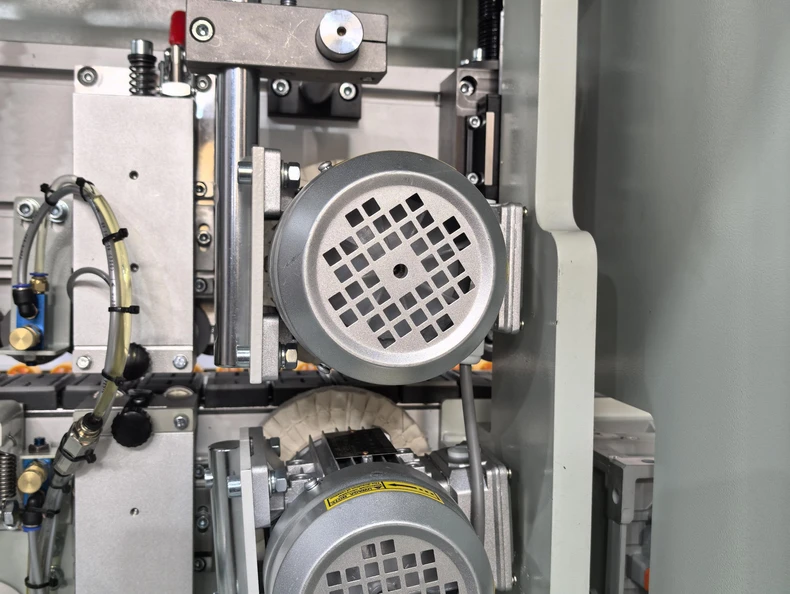

Buffing unitCloth wheels quickly polish the edge band for a smoother, more rounded finish.

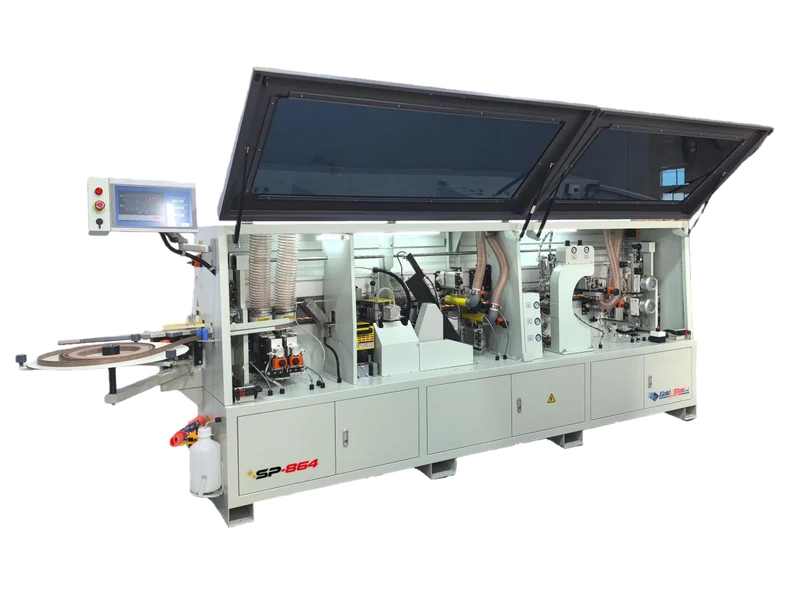

SP-864
EDGE BANDER

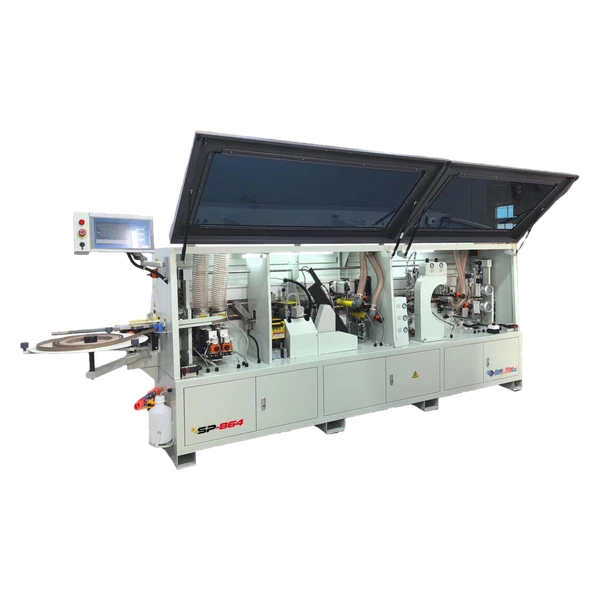

AUTOMATIC EDGE BANDER
Download CatalogHeavy-duty automatic edge banding machine with double spray, pre-milling, gluing, end cutting, fine trimming, corner rounding, radius and glue scraping, and buffing units. Feeding fence with micrometric adjustment and numerical dial, for clean, polished edges at 14 m/min on panels up to 50 mm thick.
$49,700.00
-
*Estimated payment for 60 months at 7% APR, $0 down. Subject to credit approval; your actual payment depends on the rate approved.
1100 KG
N.W
N.W
9.37KW
Power
Power
4220 x 725 x 1448mm
Packing Size
Packing Size
Would you like to request a quote?
Our Compact Series Edgebander experts are ready to help you choose the ideal model for your production needs — with guidance tailored to your workflow, budget, and material requirements.
Panel Length
Min.70mm
Working Pressure
0.6Mpa
Panel Width
Min.80mm
Power
9.37KW
Panel Thickness
12–50mm
Net Weight
1100kg
Edge Thickness
0.4–3mm
Dimensions
4622 x 1320 x 1585mm
Feeding Speed
14m/min
Packing Size
4220 x 725 x 1448mm
