Standard

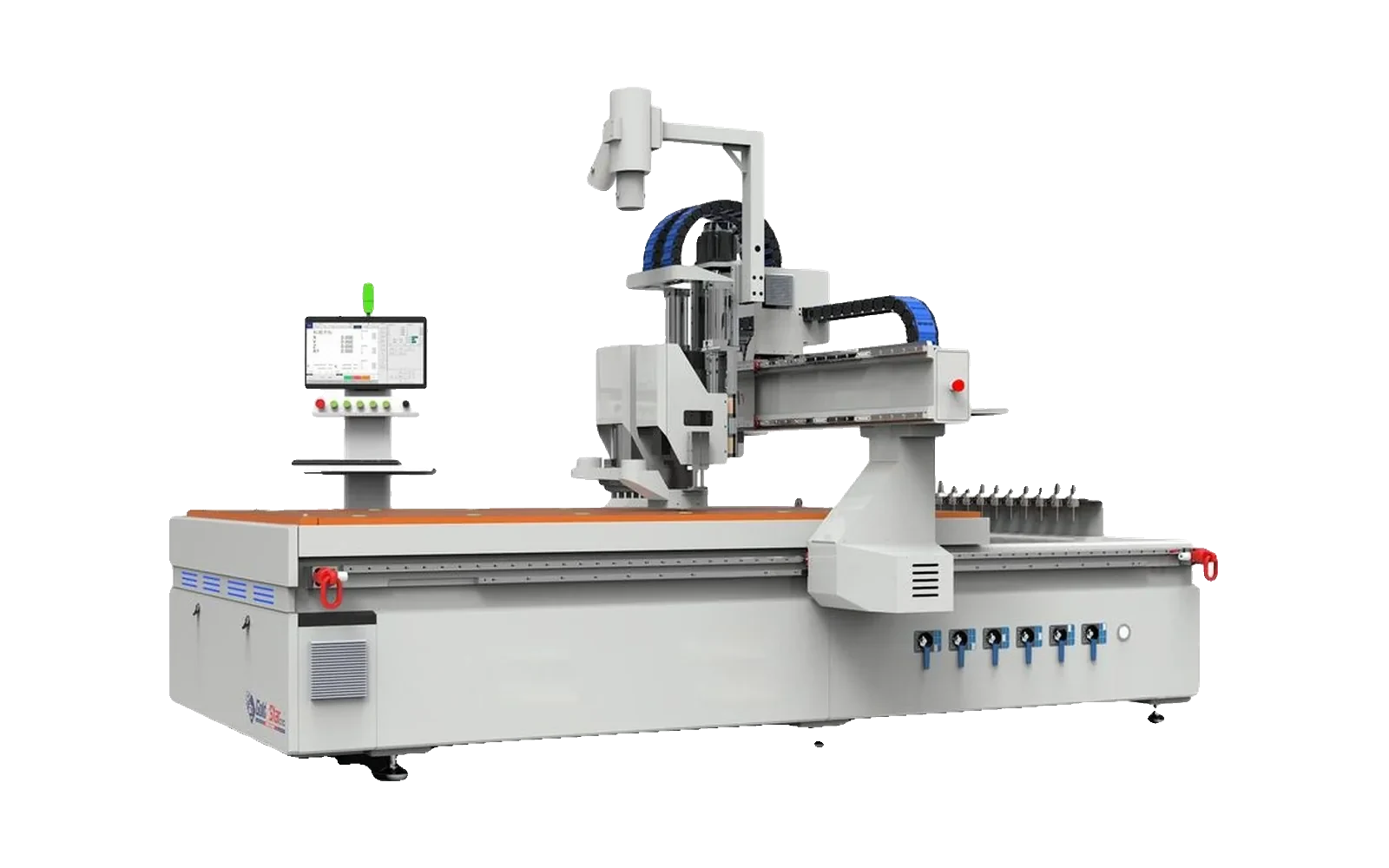

STAR PRO AG
6-zone vacuum table, multi-drill block and an 8-position linear tool magazine at the side of the table.
From $59,556.20
View STAR PRO AG
Nesting CNC routers
StarPro AG Series
One nesting platform with a drilling block, in three configurations: standard, gantry-mounted tool changer, or automatic loading and unloading.
- Models
- 3
- From
- $59,556.20
3 models
One platform, 3 models
Gantry tool changer

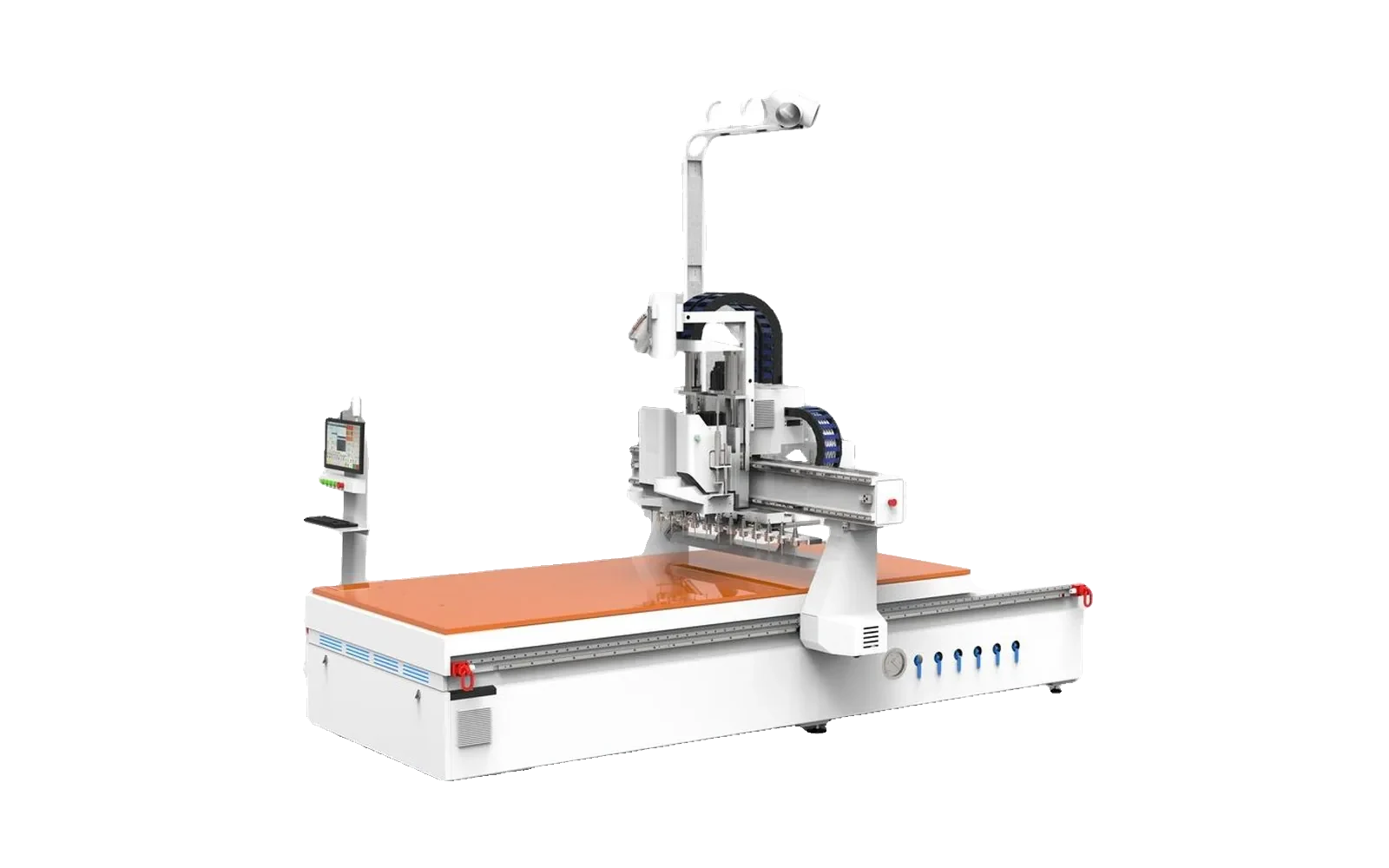

STAR PRO AG-S
The AG with the tool changer mounted on the gantry, so tools travel with the head.
From On request
View STAR PRO AG-S
Automatic loading

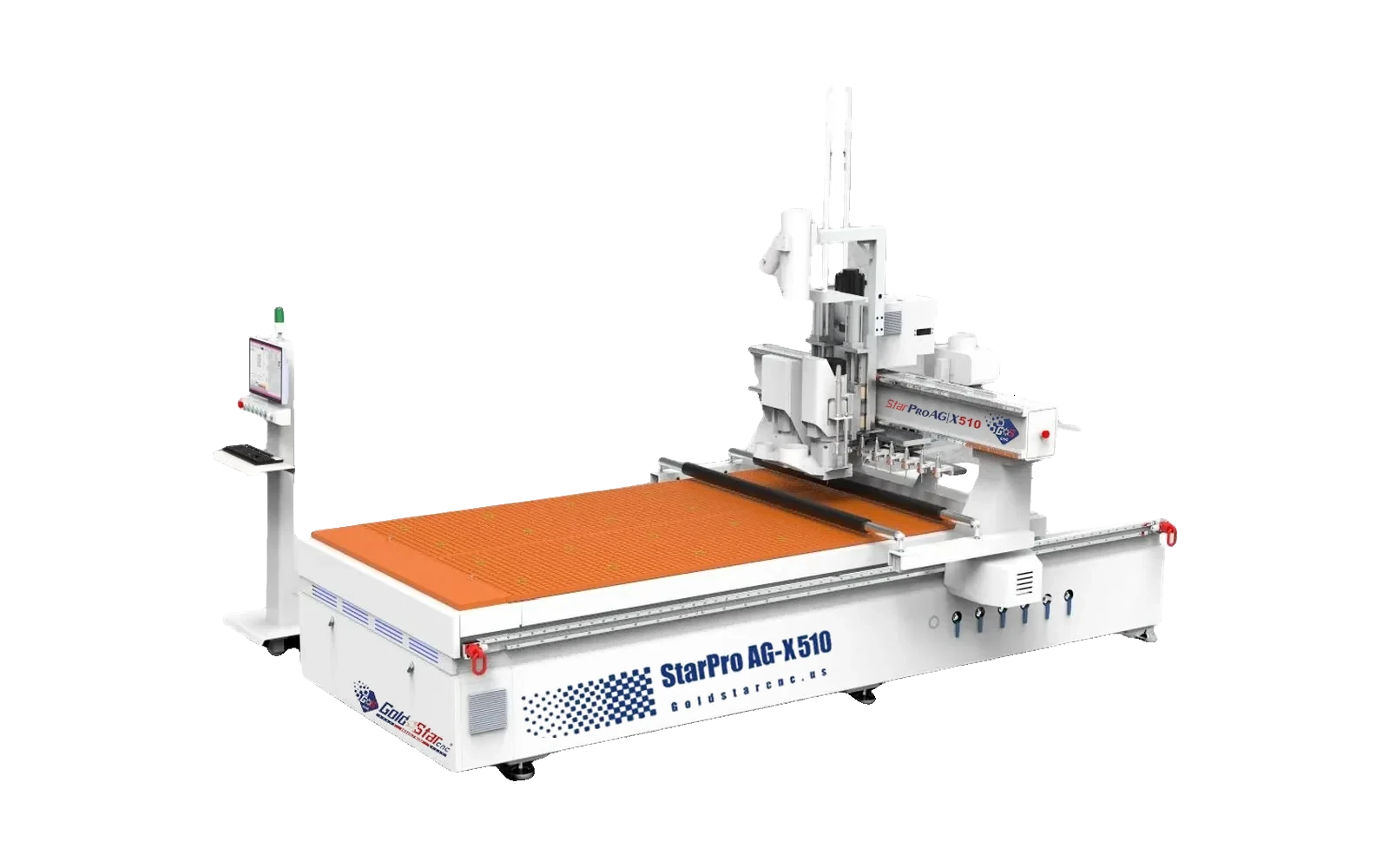

STAR PRO AG-X
The AG with automatic loading and push-off unloading for continuous production.
From On request
View STAR PRO AG-X
Comparison
Technical data
Where a value spans several columns, it is the same for those models.
| Model | Unit | STAR PRO AG | STAR PRO AG-S | STAR PRO AG-X |
|---|---|---|---|---|
| Price | ||||
| List priceUSD | USD | $59,556.20 – $66,311.30 | On request | |
| Working area | ||||
| Table (X × Y)mm | mm | 1220 × 2440 / 1525 × 3050 | ||
| Vacuum tablezones | zones | 6 | ||
| Vacuum pumpsn. | n. | 2 | ||
| Tooling | ||||
| Tool changer | Linear, side of table | — | ||
| Positionsn. | n. | 8 | — | |
| Drilling unit | Multi-drill block | |||
| Tool sensor | Automatic | |||
| Material handling | ||||
| Loading | Manual | — | ||
| Unloading | Manual | — | ||
| Pop-up pinssets | sets | 5 | ||
| Drive | ||||
| InverterkW | kW | 11 | ||
| Servo motorsW | W | 750 AC, Z brake | ||
| X/Y transmission | Helical rack | |||
| Z transmission | Ball screw | |||
| Lubrication | Automatic | |||
| Electrical | ||||
| Power supplyV / Hz | V / Hz | 240 / 60 | ||
| Phases | 1 or 3 | |||
Need help choosing?
Tell us your material, sheet size and daily volume. A specialist will recommend the right configuration.
