Production CNC routers
StarPro X Series
A heavy gantry for long production runs, from the classic X to the X-S with tool changer and unloading bar.
- Models
- 3
- From
- $58,379.75
3 models
One platform, 3 models
Tool changer + unloading

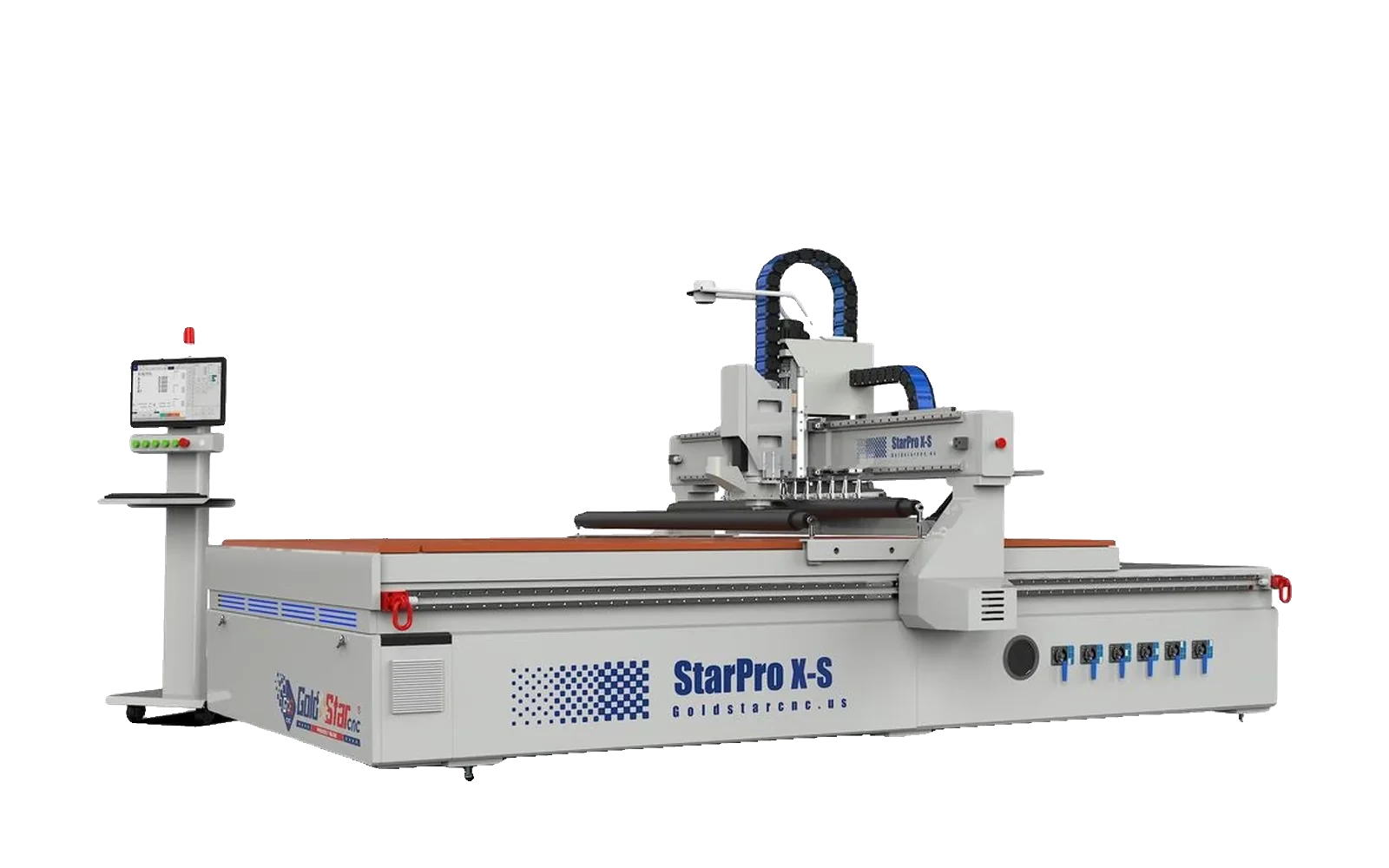

Star PRO X-S
The X with tool changer and unloading bar.
From On request
View Star PRO X-S
Comparison
Technical data
Where a value spans several columns, it is the same for those models.
| Model | Unit | Star PRO X | Star PRO X-G | Star PRO X-S |
|---|---|---|---|---|
| Price | ||||
| List priceUSD | USD | $58,379.75 – $88,297.00 | On request | |
| Working area | ||||
| Table (X × Y)mm | mm | 1220 × 2440 / 1525 × 3050 / 1830 × 3660 | ||
| Vacuum tablezones | zones | 6 | ||
| Vacuum pumpsn. | n. | 4 | ||
| Pump powerkW | kW | 2.2 | ||
| Tooling | ||||
| SpindlekW | kW | 9 | ||
| Tool changer | Linear | |||
| Positionsn. | n. | 8 | ||
| Material handling | ||||
| Pop-up pinssets | sets | 5 | ||
| Drive | ||||
| InverterkW | kW | 11 | ||
| Servo motors | AC, Z brake | |||
| X/Y transmission | Helical rack | |||
| Z transmission | Ball screw | |||
| Guides | Square rails | |||
| Lubrication | Automatic | |||
| Electrical | ||||
| Power supplyV / Hz | V / Hz | 240 / 60 | ||
| Phases | 1 or 3 | |||
Need help choosing?
Tell us your material, sheet size and daily volume. A specialist will recommend the right configuration.
