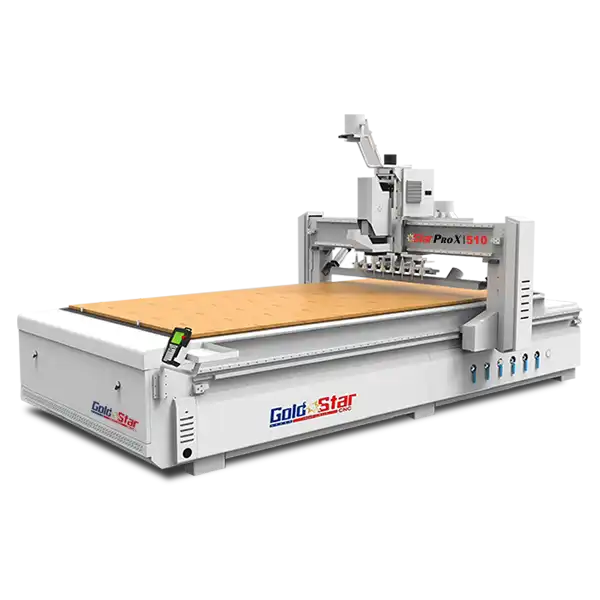

Star PRO X CNC Router Machine

Request a Quote
Star PRO X CNC Router - GOLDSTARCNC

Star PRO X CNC Router Machine

Request a Quote
GENERAL INFORMATION

The Star PRO X CNC Router Machine offers a powerful combination of precision, versatility, and advanced features, making it an ideal solution for workshops seeking to enhance productivity and achieve consistently high-quality results.

Download Catalog
Request a Quote

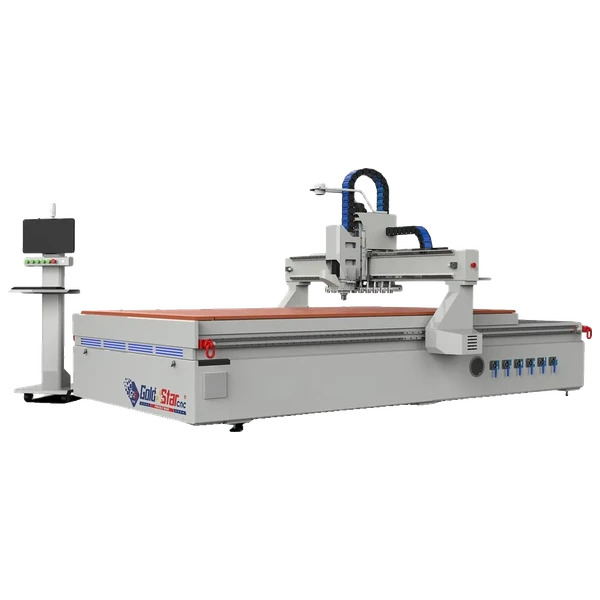

Star PRO X CNC Router - GOLDSTARCNC

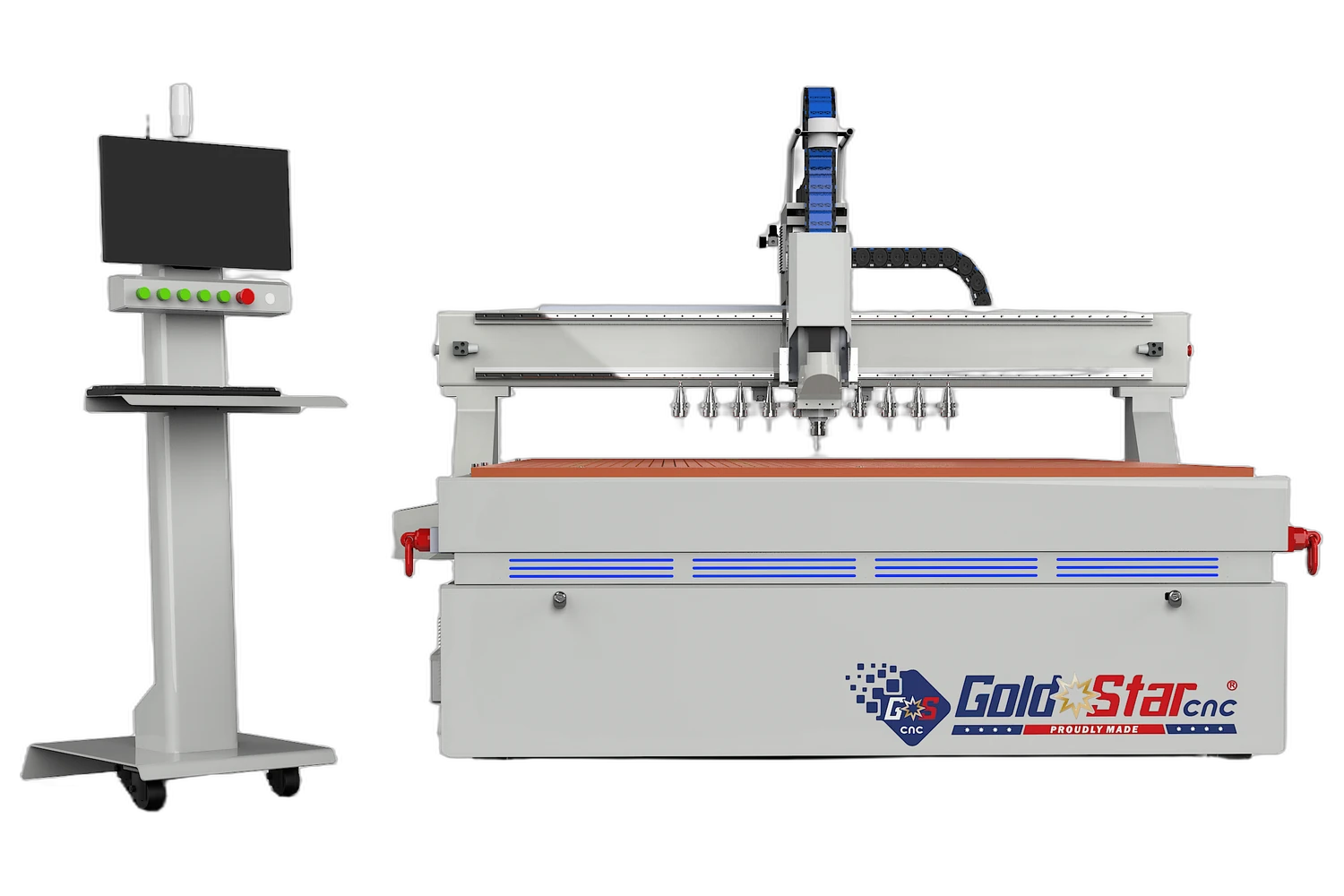

Star PRO X CNC Router Machine, view 2

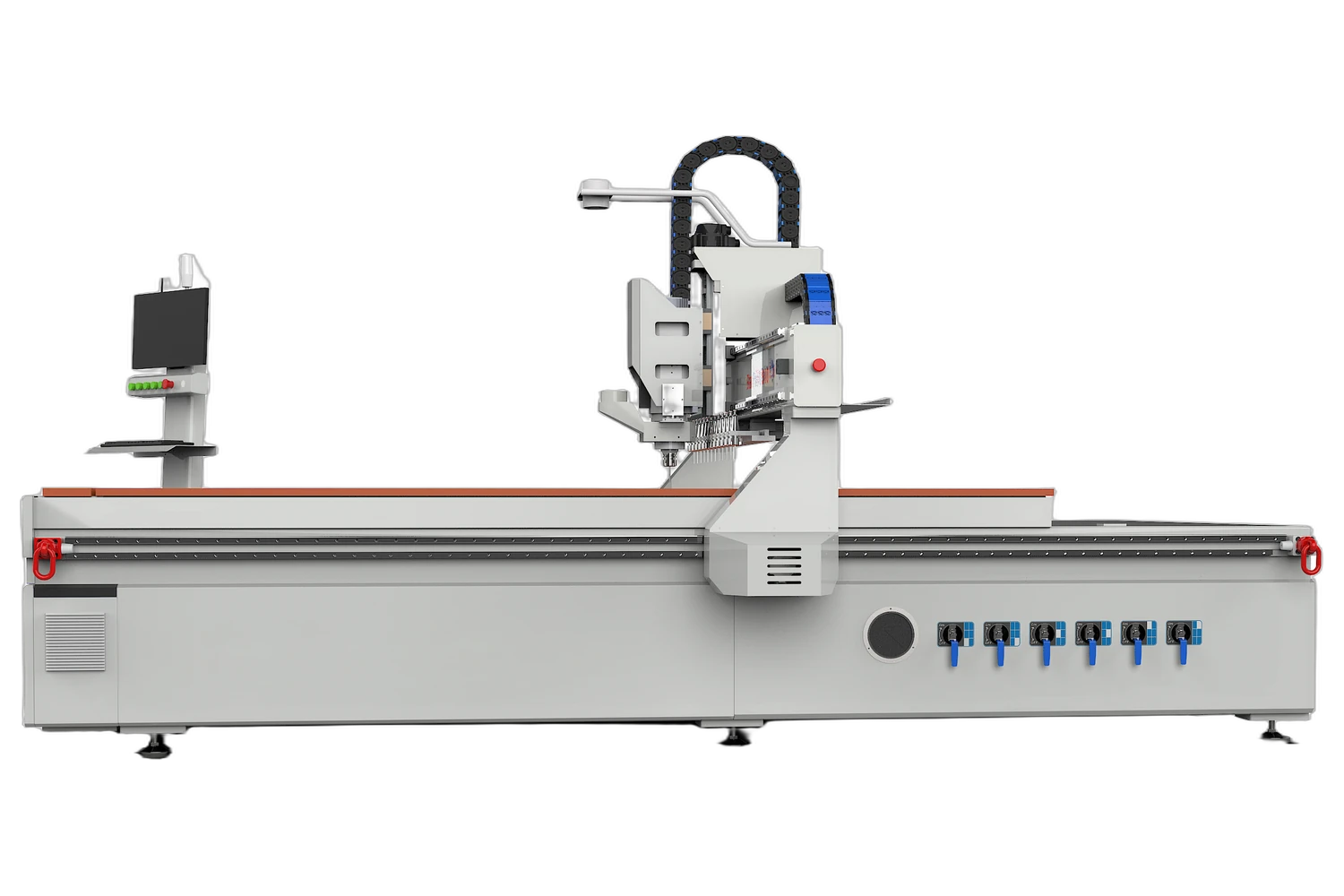

Star PRO X CNC Router Machine, view 3
Request a Quote
Contact Us

Finance For As Low As $1,156/mo.* Apply Now.

*Estimated payment for 60 months at 7% APR, $0 down. Subject to credit approval; your actual payment depends on the rate approved.

Star PRO X CNC Router Machine

-

StarPro X Series

Other versions of this machine

Star PRO X-GX-G. Configuration to be confirmed with the factory.
Star PRO X-STool changer + unloading. The X with tool changer and unloading bar.
Technical data

Specifications

Working area
Table (X × Y)mm mm 1220 × 2440 / 1525 × 3050 / 1830 × 3660
Vacuum tablezones zones 6
Vacuum pumpsn. n. 4
Pump powerkW kW 2.2
Tooling
SpindlekW kW 9
Tool changer Linear
Positionsn. n. 8
Material handling
Pop-up pinssets sets 5
Drive
InverterkW kW 11
Servo motors AC, Z brake
X/Y transmission Helical rack
Z transmission Ball screw
Guides Square rails
Lubrication Automatic
Electrical
Power supplyV / Hz V / Hz 240 / 60
Phases 1 or 3
Star PRO X CNC Router Machine - User Manual
