Cabinet-shop CNC routers

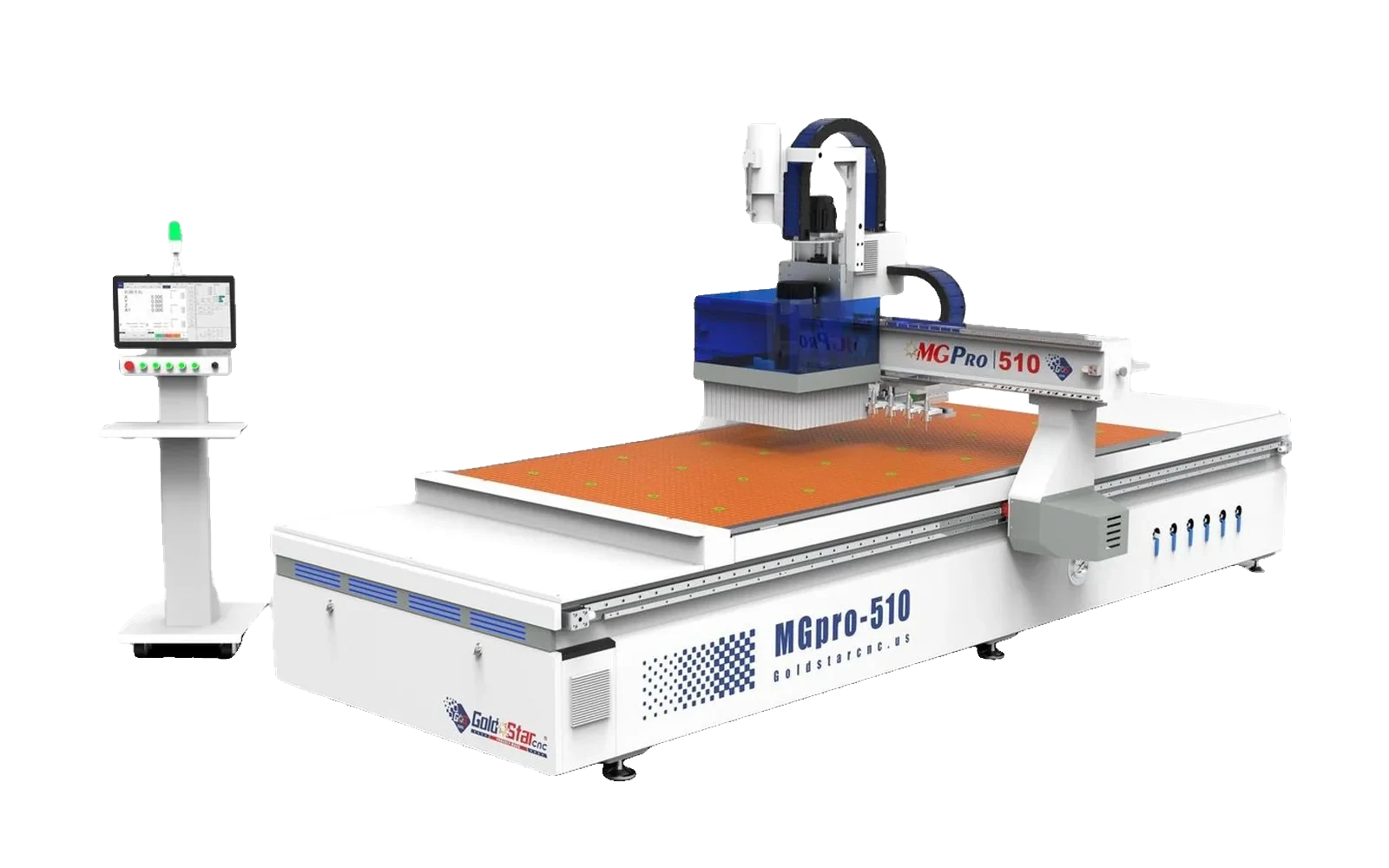

MG Pro Series

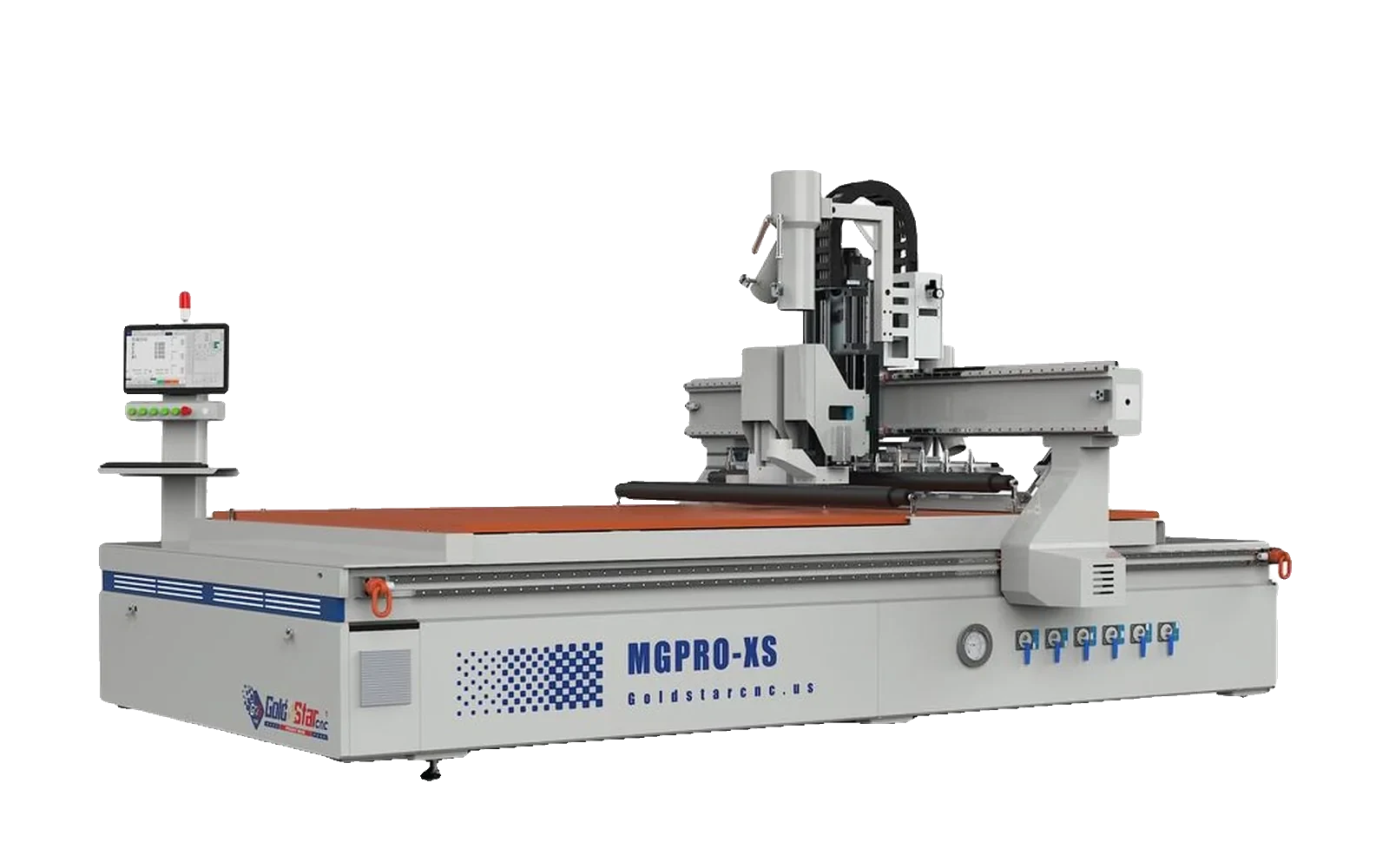

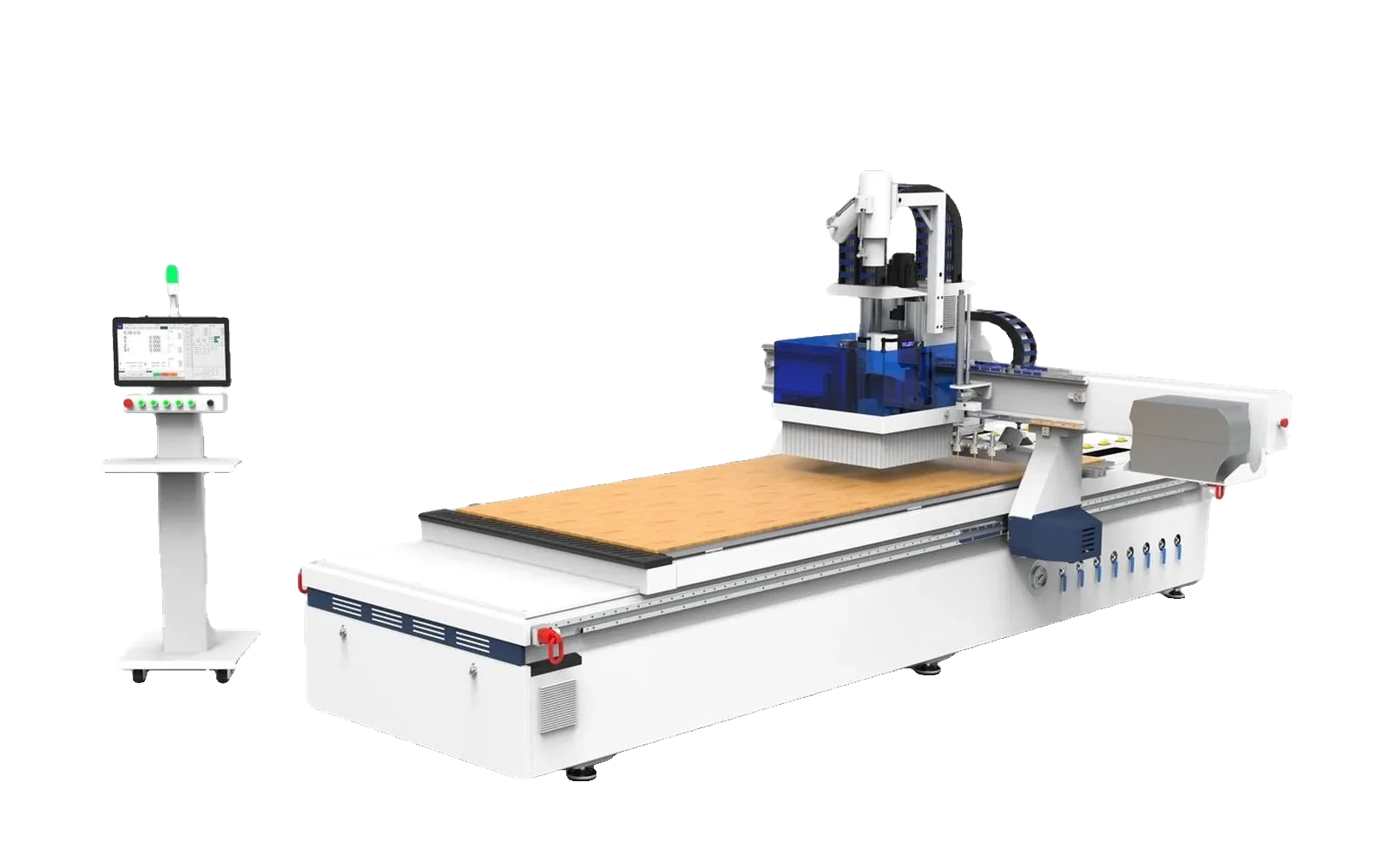

An enclosed carousel head for cabinet shops. Step up to the XP loading table or the XS head.
- Models
- 3
- From
- $85,123.00
3 models
One platform, 3 models
Comparison
Technical data
Where a value spans several columns, it is the same for those models.
| Model | Unit | MG Pro | MG Pro-XP | MG Pro-XS |
|---|---|---|---|---|
| Price | ||||
| List priceUSD | USD | $85,123.00 – $124,763.50 | On request | |
| Working area | ||||
| Table (X × Y)mm | mm | 1525 × 3050 / 1830 × 3660 | ||
| Vacuum tablezones | zones | 6 | ||
| Vacuum pumpsn. | n. | 2 | ||
| Pump powerkW | kW | 10.5 | ||
| Tooling | ||||
| SpindlekW | kW | 9, air-cooled | ||
| Tool changer | Linear | |||
| Positionsn. | n. | 12 | ||
| Tool sensor | Automatic | |||
| Material handling | ||||
| Pop-up pinssets | sets | 8 | ||
| Dust collector | 4 bags, 10.5 kW | |||
| Dust shoe | Pneumatic | |||
| Drive | ||||
| Controller | 19" LCD, keyboard, mouse, handwheel | |||
| InverterkW | kW | 11 | ||
| Servo motorsW | W | 2 × 850 + 2 × 1300 | ||
| X/Y transmission | Helical rack and pinion | |||
| Z transmission | Ball screw | |||
| Lubrication | Automatic | |||
| Electrical | ||||
| Power supplyV / Hz | V / Hz | 240 / 60 | ||
| Phases | 1 or 3 | |||
Need help choosing?
Tell us your material, sheet size and daily volume. A specialist will recommend the right configuration.
