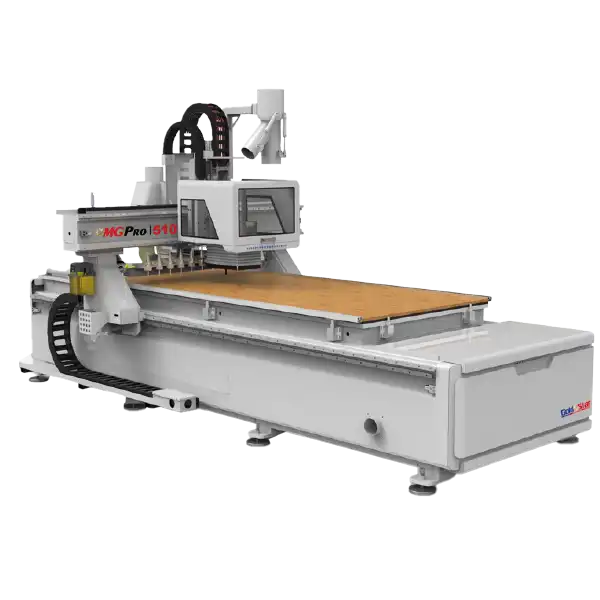

MG Pro CNC Router Machine
MG Pro CNC Router Machine
GENERAL INFORMATION
The MG Pro CNC Router Machine is a powerful and versatile cutting solution that incorporates advanced features and high-quality components. It is specifically designed to enhance productivity and streamline operations in any workshop setting.
Finance For As Low As $1,686/mo.* Apply Now.
*Estimated payment for 60 months at 7% APR, $0 down. Subject to credit approval; your actual payment depends on the rate approved.
MG Pro CNC Router Machine
-
MG Pro Series
Other versions of this machine
MG Pro-XPLoading table. The MG Pro with a loading table.
MG Pro-XSXS head. Configuration to be confirmed with the factory.
Technical data
Specifications
| Working area | ||
|---|---|---|
| Table (X × Y)mm | mm | 1525 × 3050 / 1830 × 3660 |
| Vacuum tablezones | zones | 6 |
| Vacuum pumpsn. | n. | 2 |
| Pump powerkW | kW | 10.5 |
| Tooling | ||
| SpindlekW | kW | 9, air-cooled |
| Tool changer | Linear | |
| Positionsn. | n. | 12 |
| Tool sensor | Automatic | |
| Material handling | ||
| Pop-up pinssets | sets | 8 |
| Dust collector | 4 bags, 10.5 kW | |
| Dust shoe | Pneumatic | |
| Drive | ||
| Controller | 19" LCD, keyboard, mouse, handwheel | |
| InverterkW | kW | 11 |
| Servo motorsW | W | 2 × 850 + 2 × 1300 |
| X/Y transmission | Helical rack and pinion | |
| Z transmission | Ball screw | |
| Lubrication | Automatic | |
| Electrical | ||
| Power supplyV / Hz | V / Hz | 240 / 60 |
| Phases | 1 or 3 | |
