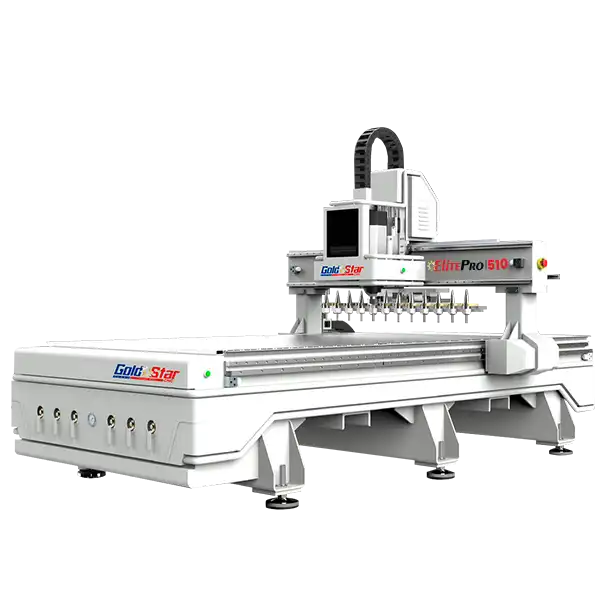

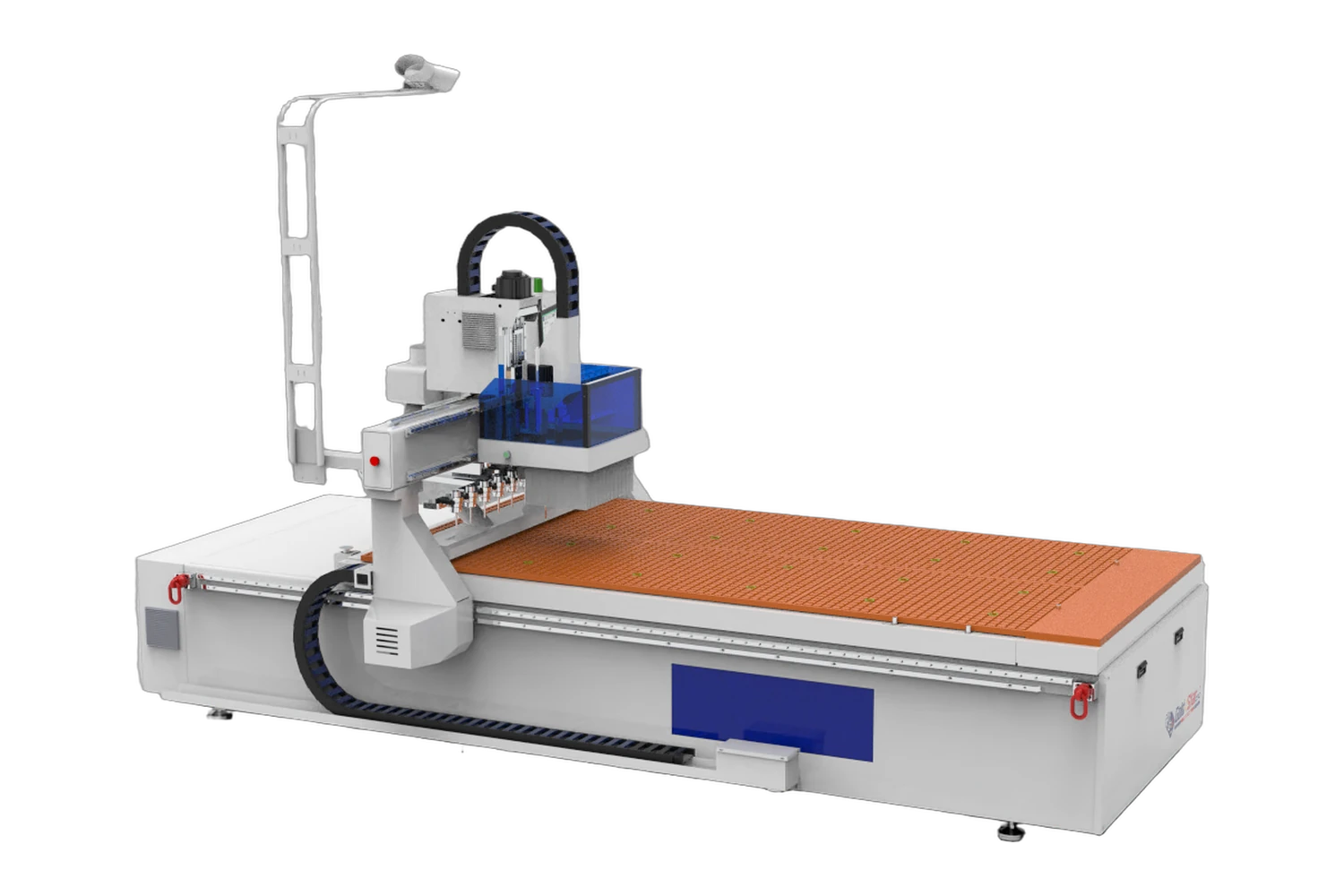

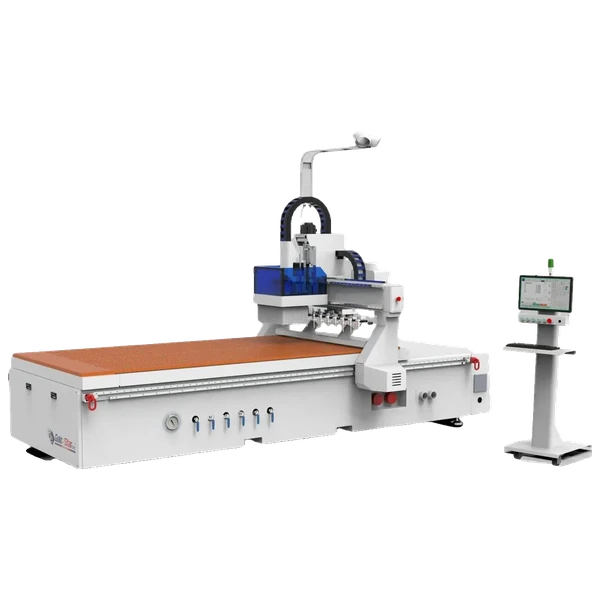

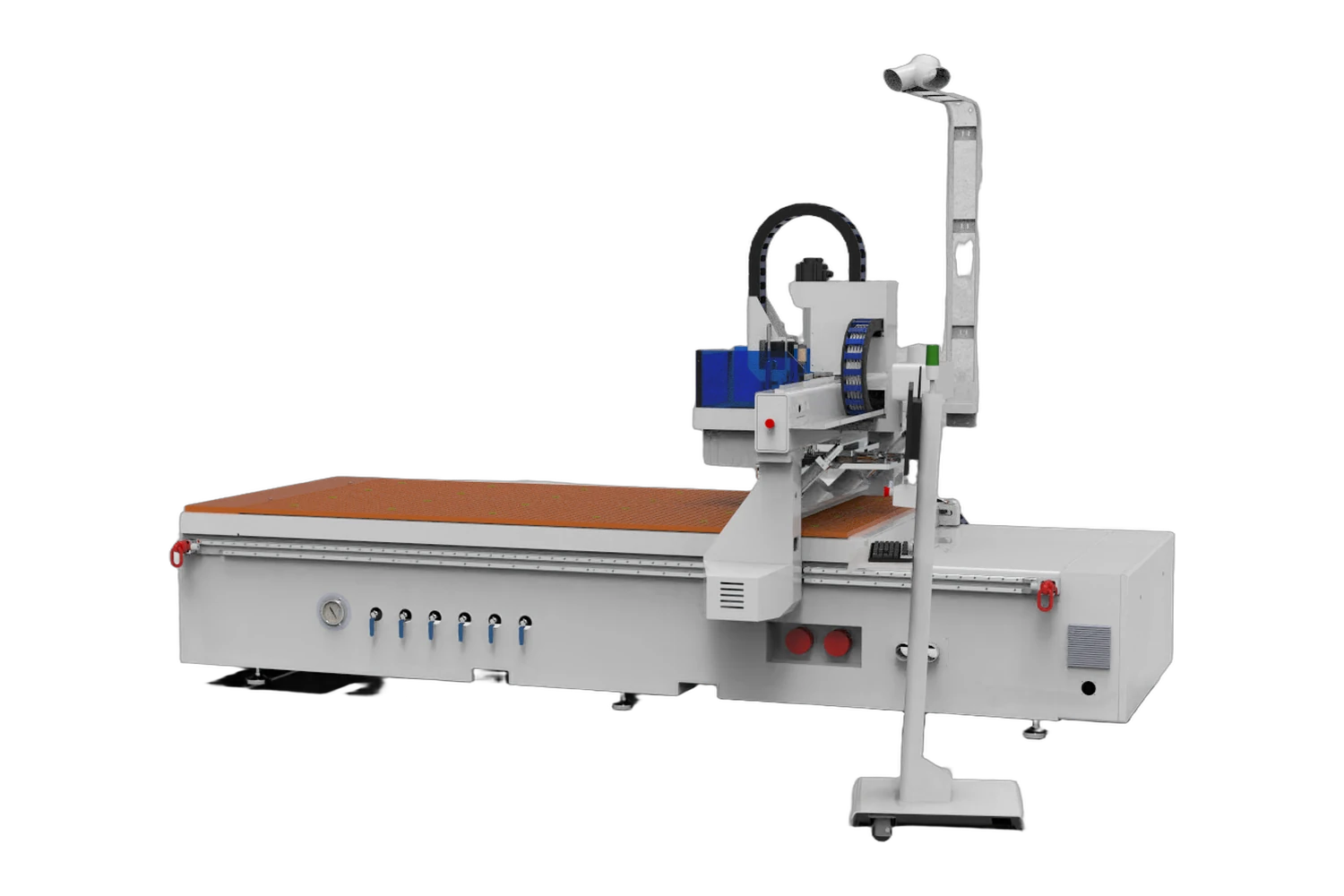

ElitePro 510 Wood CNC Router Machine
ElitePro 510 Wood CNC Router Machine
The ElitePro 510 Wood CNC Router is designed to deliver exceptional milling and engraving quality in a working area of 5 feet x 10 feet x 1 foot. With its combination of high-quality components and advanced features, this machine provides accurate and reliable results for a variety of applications in the woodworking industry.
Finance For As Low As $1,190/mo.* Apply Now.
*Estimated payment for 60 months at 7% APR, $0 down. Subject to credit approval; your actual payment depends on the rate approved.
ElitePro 510 Wood CNC Router Machine
-
Other versions of this machine
Specifications
| Working area | ||
|---|---|---|
| Table (X × Y)mm | mm | 1525 × 3050 |
| Vacuum pumpsn. | n. | 1 |
| Pump powerkW | kW | 11 |
| Tooling | ||
| SpindlekW | kW | 9, air-cooled |
| Tool changer | Linear, under the gantry | |
| Positionsn. | n. | 12 |
| Material handling | ||
| Pop-up pinssets | sets | 5 |
| Drive | ||
| InverterkW | kW | 11 |
| Z servo motorW | W | 750, with brake |
| X/Y transmission | Helical rack | |
| Z transmission | Ball screw | |
| Guides | Square rails | |
| Lubrication | Automatic | |
| Electrical | ||
| Control cabinet | Independent | |
| Power supplyV / Hz | V / Hz | 240 / 60 |
| Phases | 1 or 3 | |
