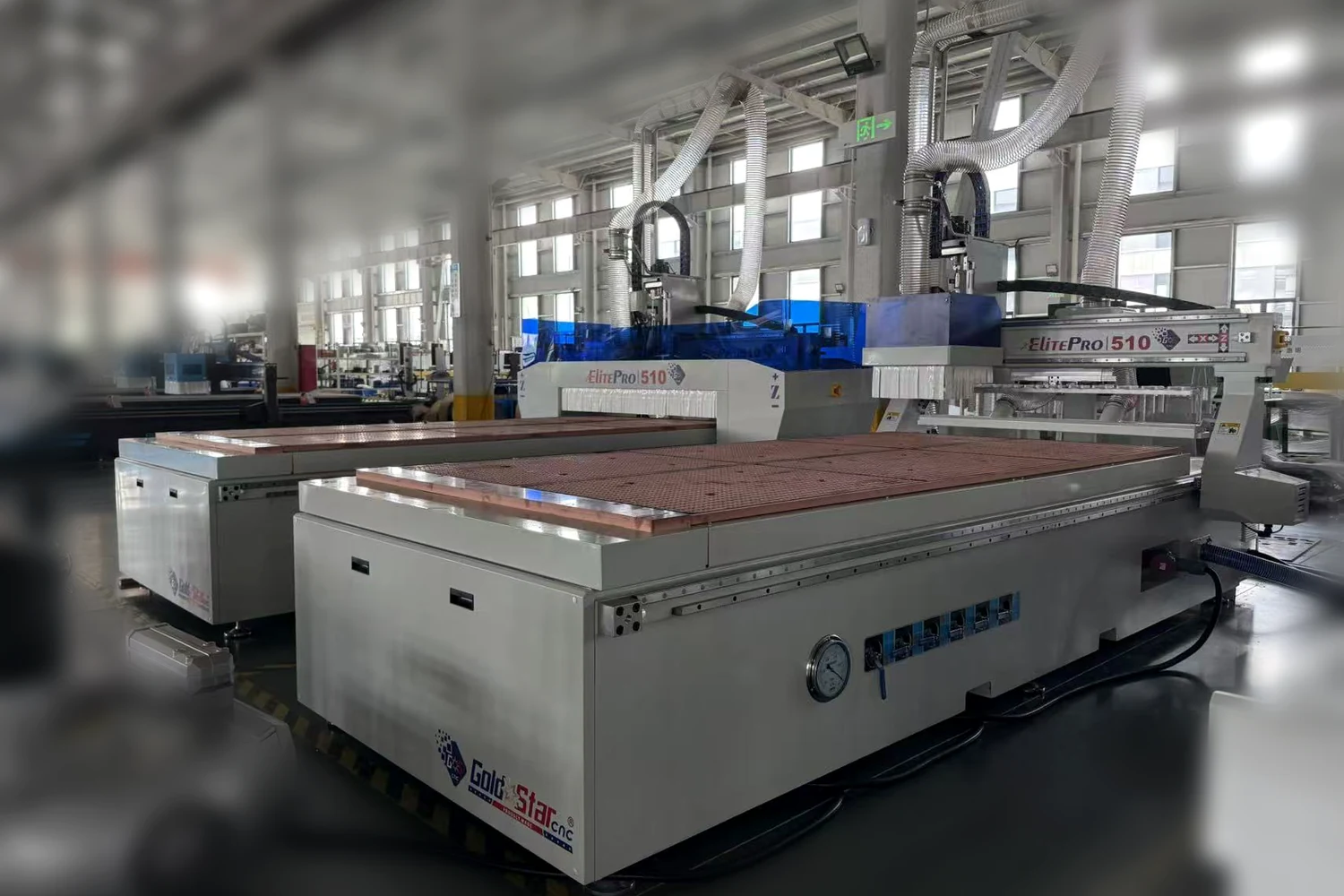

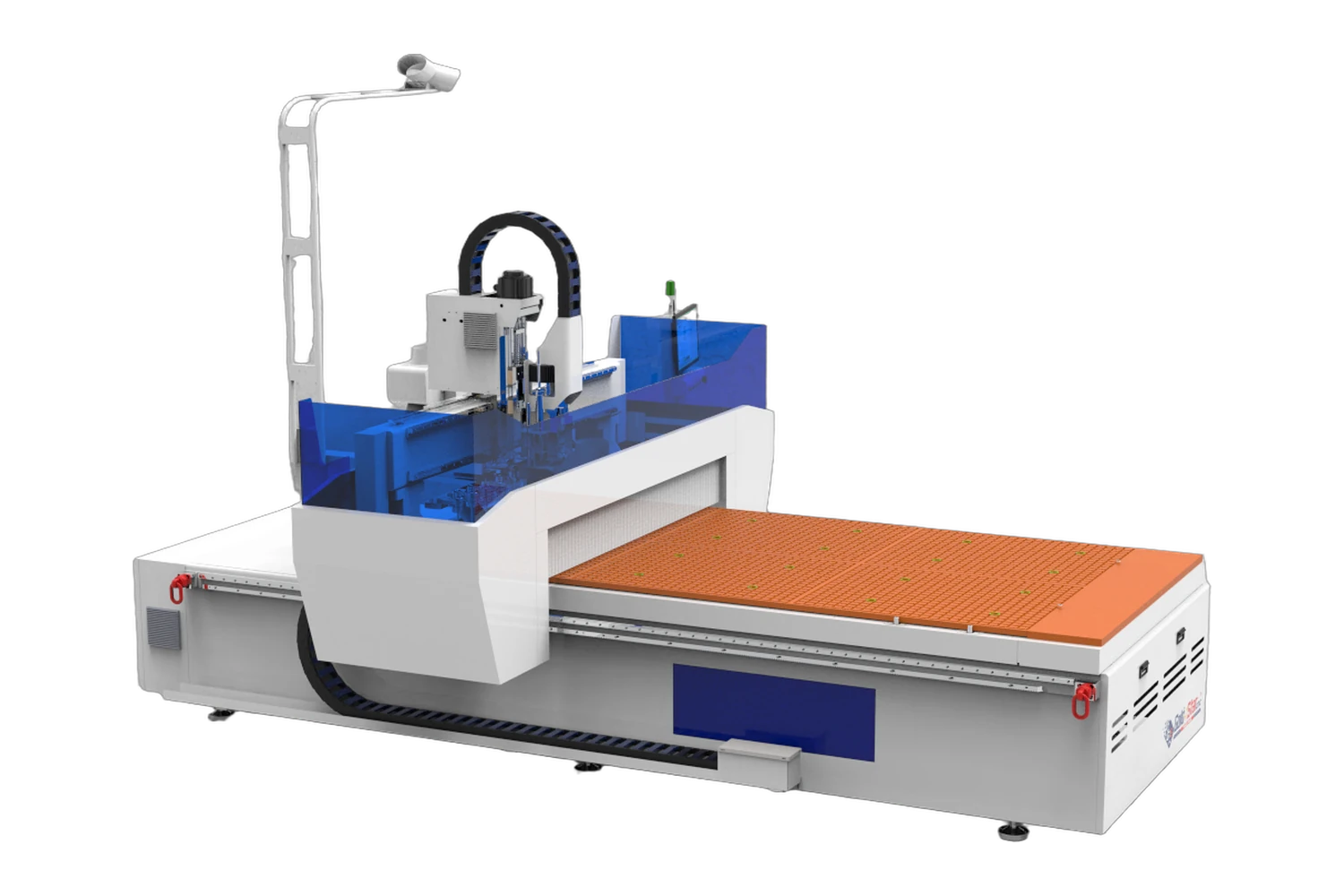

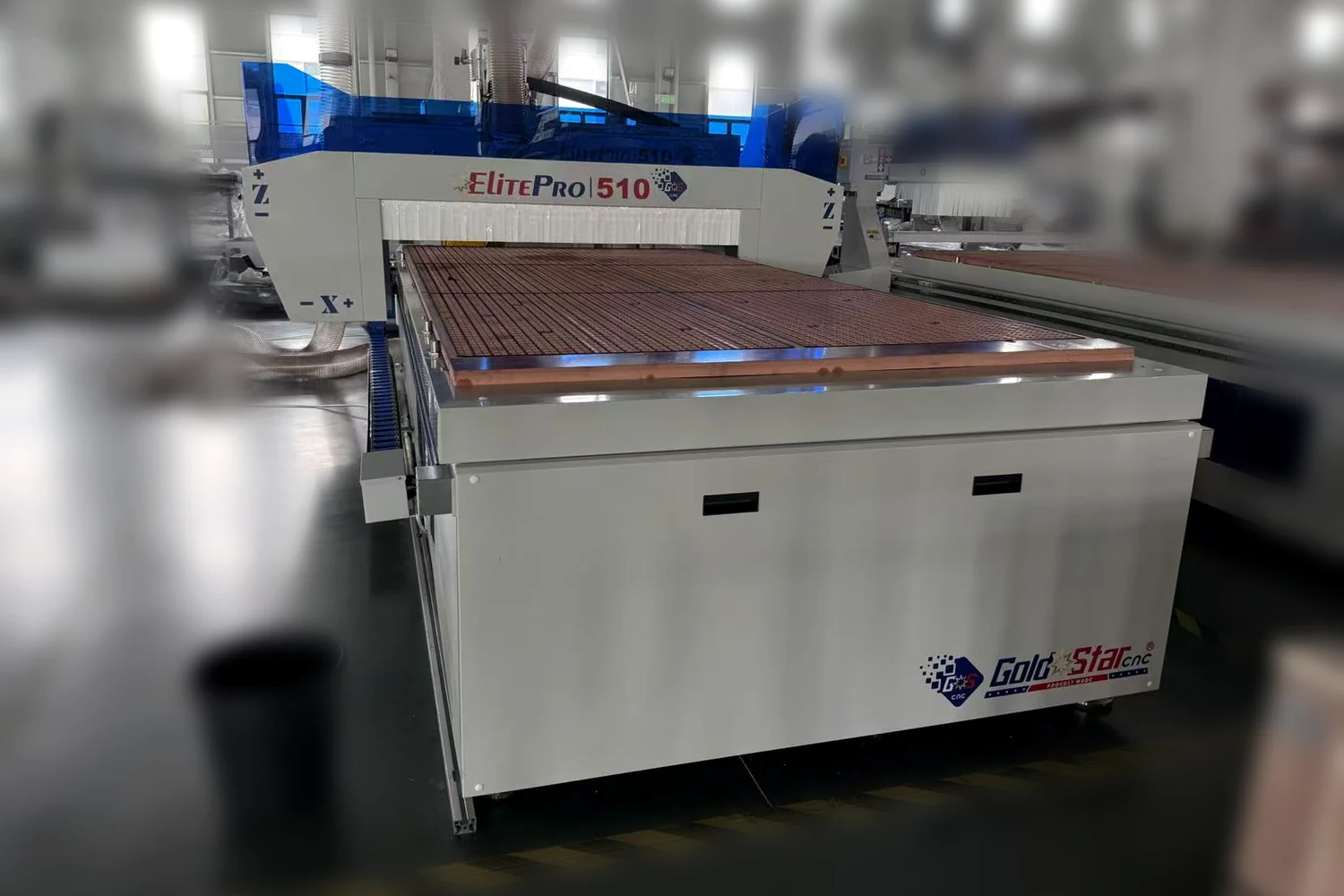

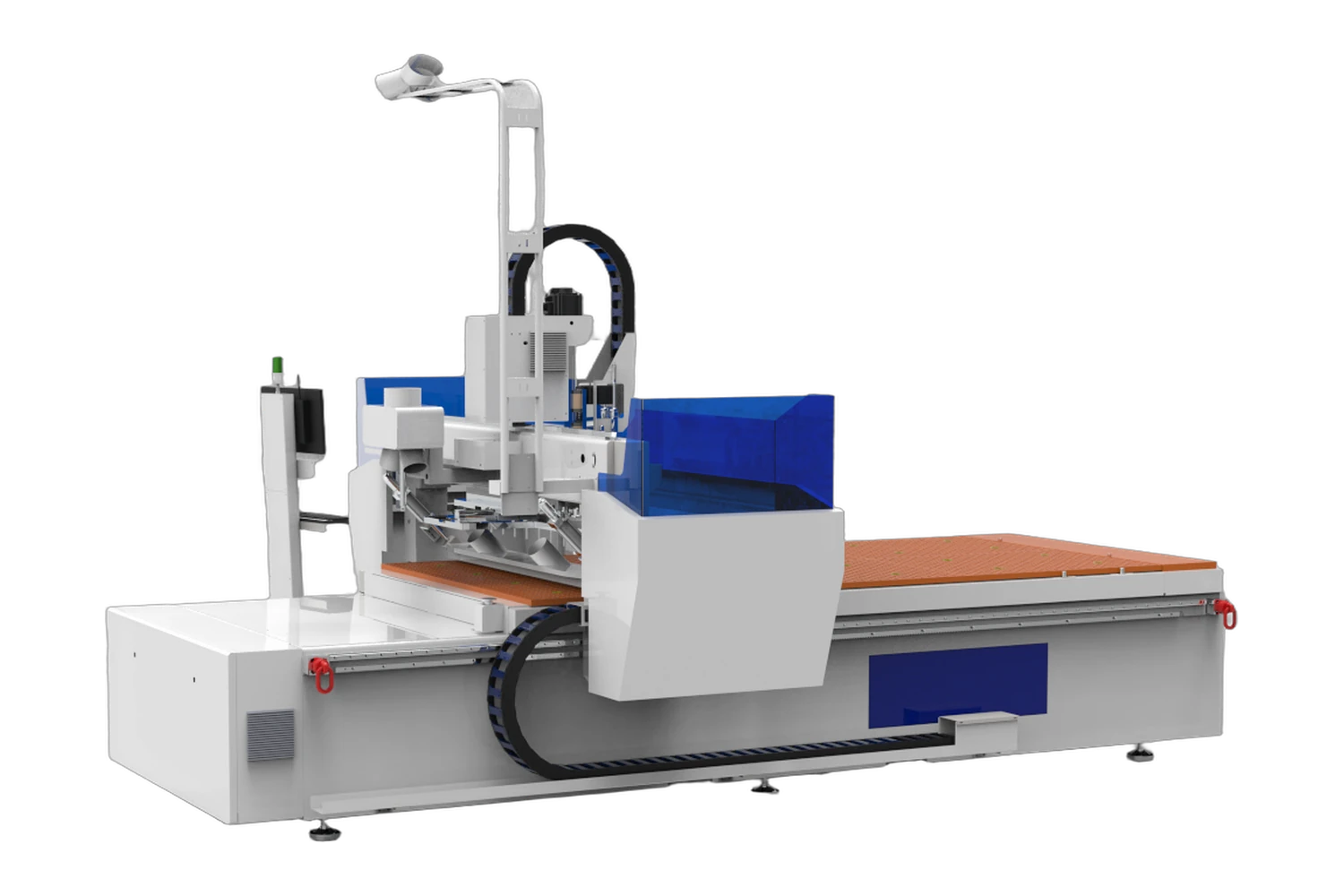

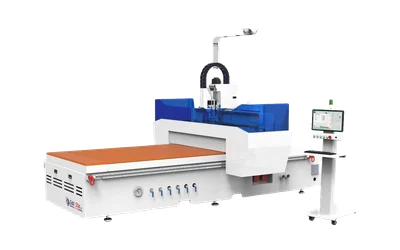

ElitePro 510 Cover CNC Router Machine
ElitePro 510 Cover CNC Router Machine
GENERAL INFORMATION
The ElitePro 510 Cover CNC Router is designed to deliver exceptional milling and engraving quality in a working area of 5 feet x 10 feet x 1 foot. With its combination of high-quality components and advanced features, this machine provides accurate and reliable results for a variety of applications in the woodworking industry.
The ElitePro with a full gantry cover. Everything else is identical to the ElitePro 510 Wood.
ElitePro 510 Cover CNC Router Machine
| : White |
|---|
The ElitePro 510 Cover cnc router offers exceptional performance and precision in a working area of approximately 5 feet x 10 feet x 1 foot. With a built-in vacuum table, this router provides secure clamping of workpieces during the engraving and cutting process.
Key Features:
- Powerful 12 HP motor for precise cuts and engravings.
- 15 HP inverter for reliable power management.
- 1 HP servo motor and driver on the Z-axis with brake for smooth and accurate movements.
- Reducer for improved motion control.
- Linear tool magazine with capacity for 12 tools under the gantry for quick tool changes.
- High-quality square rails for stable and precise motion.
- Helical rack and ball screw on the Z-axis for enhanced accuracy.
- Pop-up pins (5 sets) for easy alignment and positioning.
- Automatic lubrication system for convenient maintenance.
- 15 HP vacuum pump for efficient workpiece clamping.
- Independent control cabinet for easy access and control.Working voltage: 240V Single Phase 60Hz and 240 Three Phase 60 Hz.
On request
Request a quote-
ElitePro Series
What changes from the ElitePro 510 Wood
Full gantry coverAn enclosure over the gantry for a quieter, cleaner shop floor.

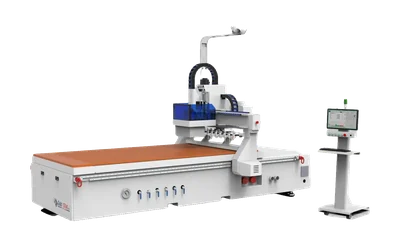

ElitePro 510 WoodEverything else is identical to the ElitePro 510 Wood.
Technical data
Specifications
| Working area | ||
|---|---|---|
| Table (X × Y)mm | mm | 1525 × 3050 |
| Vacuum pumpsn. | n. | 1 |
| Pump powerkW | kW | 11 |
| Tooling | ||
| SpindlekW | kW | 9, air-cooled |
| Tool changer | Linear, under the gantry | |
| Positionsn. | n. | 12 |
| Material handling | ||
| Pop-up pinssets | sets | 5 |
| Drive | ||
| InverterkW | kW | 11 |
| Z servo motorW | W | 750, with brake |
| X/Y transmission | Helical rack | |
| Z transmission | Ball screw | |
| Guides | Square rails | |
| Lubrication | Automatic | |
| Electrical | ||
| Control cabinet | Independent | |
| Power supplyV / Hz | V / Hz | 240 / 60 |
| Phases | 1 or 3 | |
