XP-864 SERVO
Touch screen control panel
Diamond pre-milling unit
Teflon-coated glue pot
End cutting unit
Servo fine trimming unit
Servo corner rounding unit
Servo radius scraping unit
Buffing unit
XP-864 SERVO

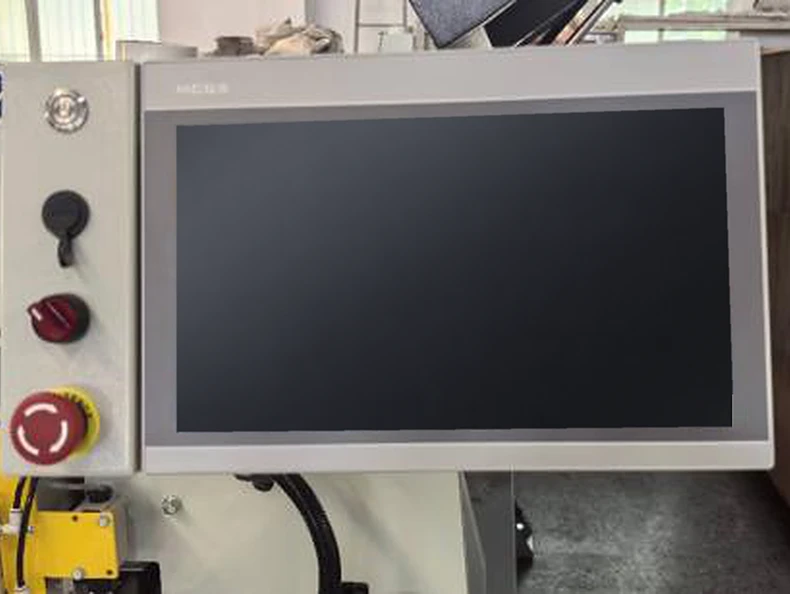

Touch screen control panel
Touch screen control panelEasy, self-explanatory view of every unit and its function, with error messages shown on screen.

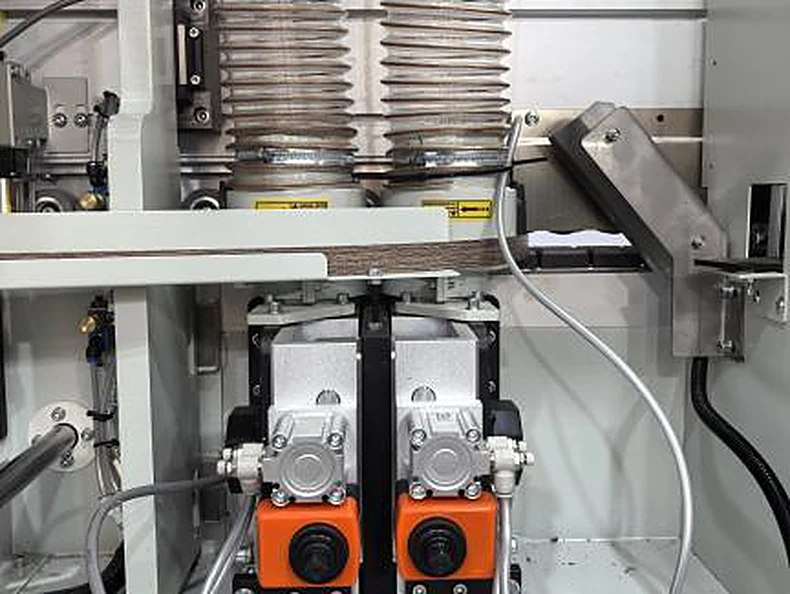

Diamond pre-milling unit
Diamond pre-milling unitDiamond knives remove burrs and flatten the panel edge so the band bonds perfectly and firmly. Servo-adjusted feeding fence.

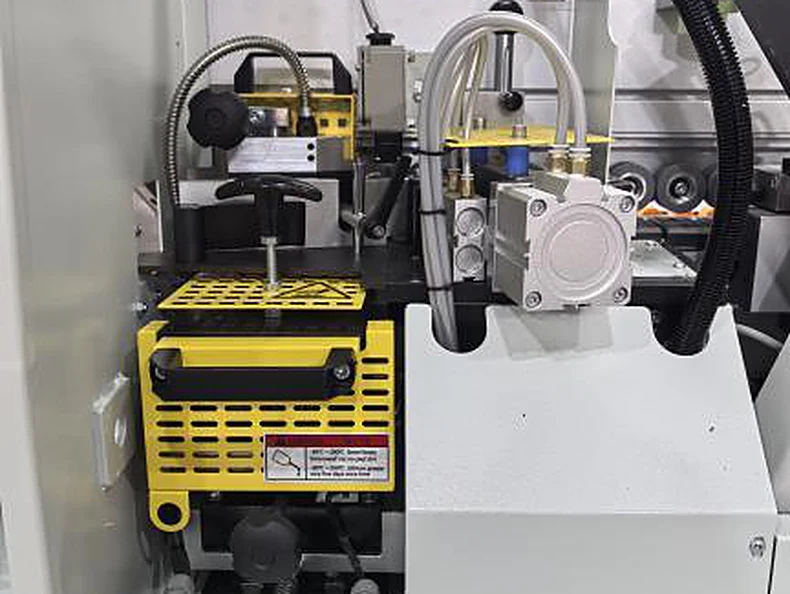

Teflon-coated glue pot
Teflon-coated glue potReaches operating temperature in only 15 minutes, with a Teflon-coated glue pot and quick-change system.

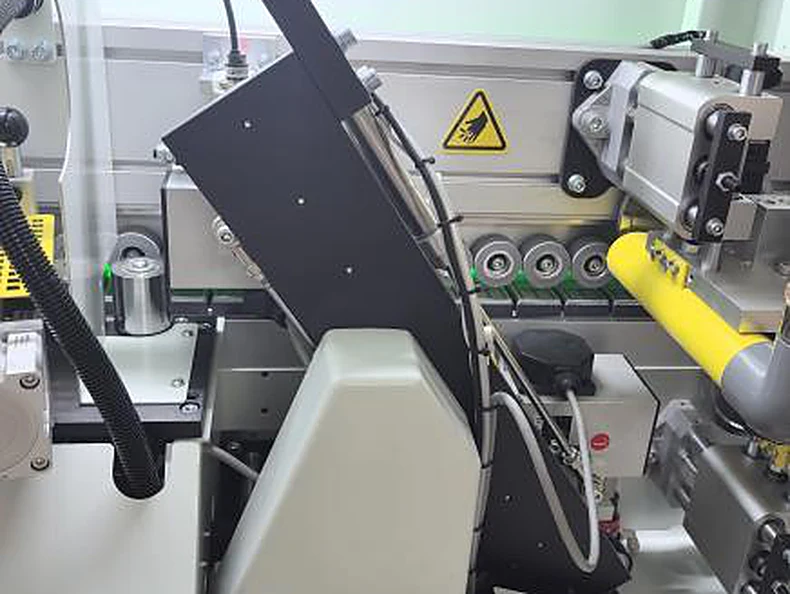

End cutting unit
End cutting unitTwo high-speed motors cut both ends of the band for stable, perfectly finished ends.

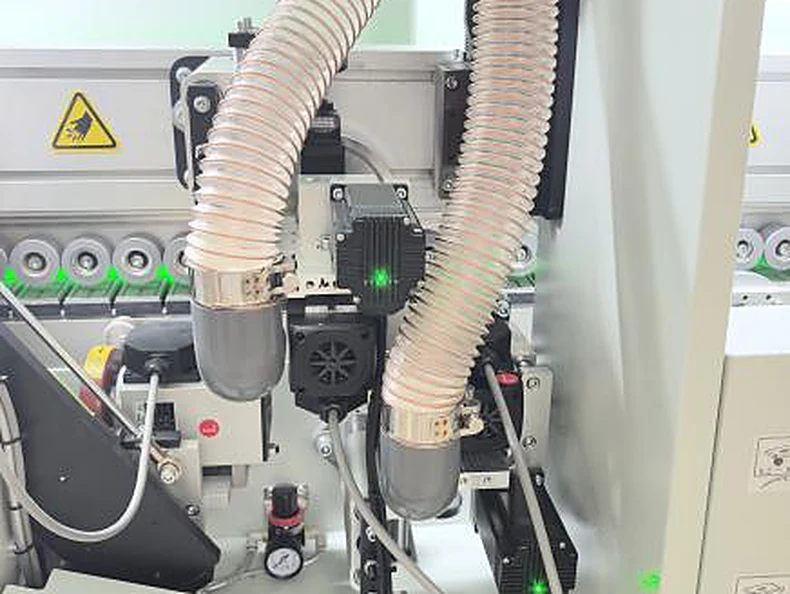

Servo fine trimming unit
Servo fine trimming unitServo-controlled trimming that adjusts to the thickness of the PVC edge band.

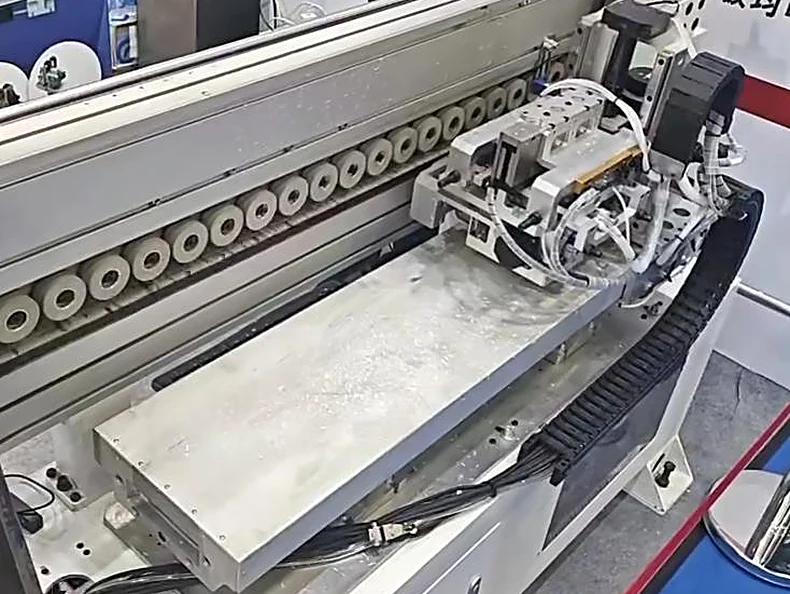

Servo corner rounding unit
Servo corner rounding unitFull-servo rounding of the front and rear corners on straight, chamfered and post-formed panels.

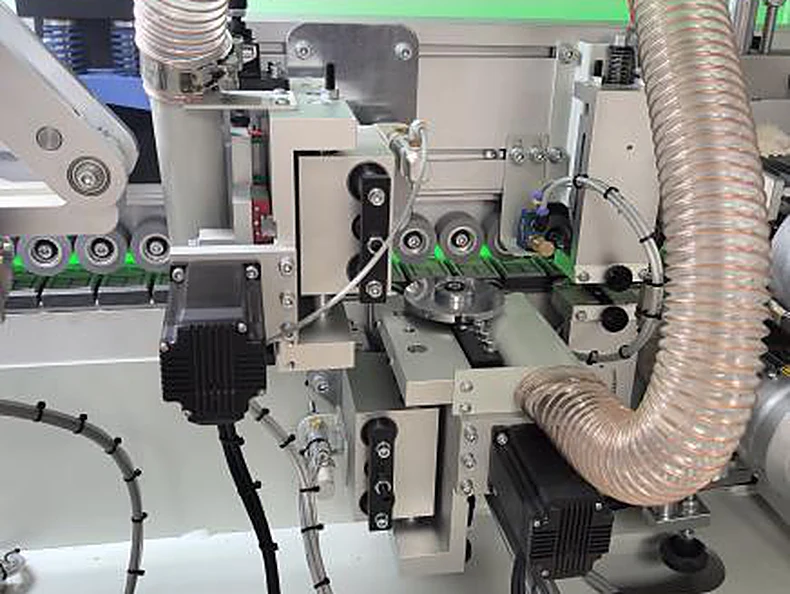

Servo radius scraping unit
Servo radius scraping unitServo-controlled fine scraping that adjusts to the thickness of the PVC edge band.

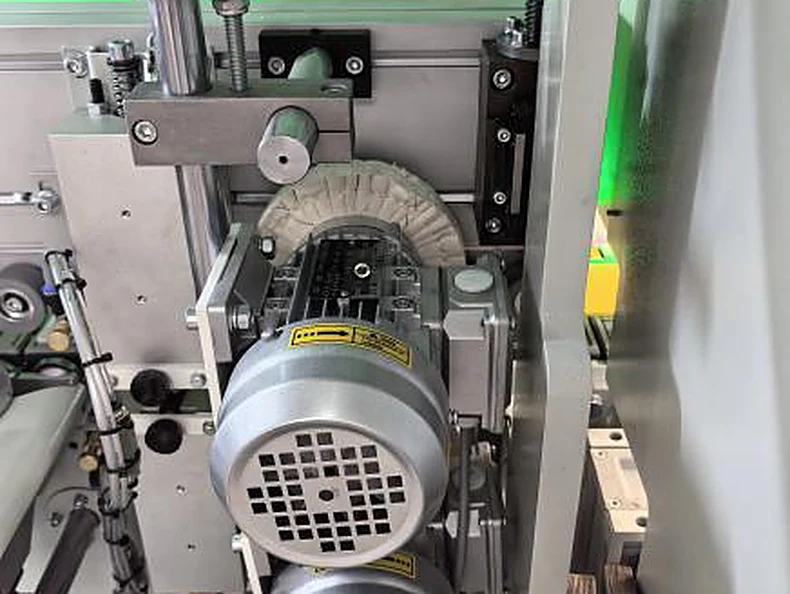

Buffing unit
Buffing unitCloth wheels quickly polish the edge band for a smoother, more rounded finish.

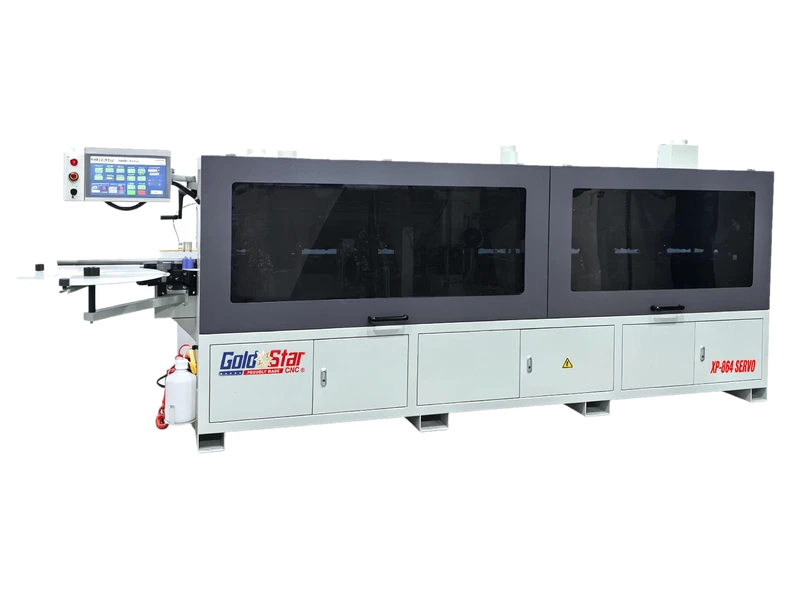

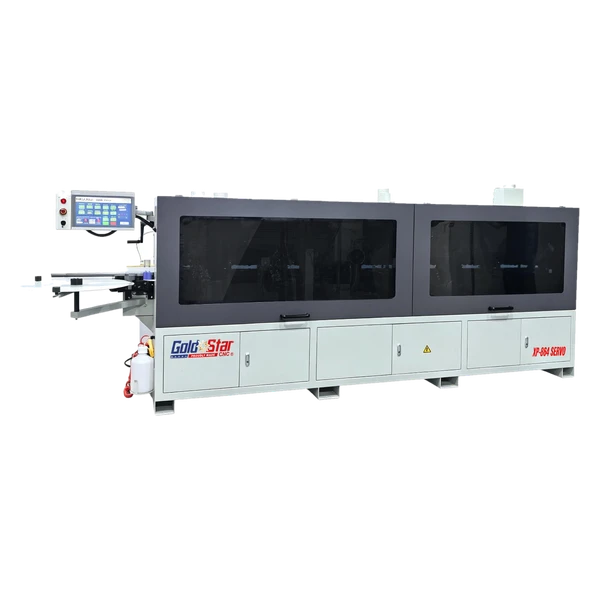

XP-864 SERVO

EDGE BANDER

SERVO EDGE BANDER

download cnc routers catalog  Download Catalog

Full-servo edge banding machine with double spray, pre-milling, gluing, end cutting, fine trimming, corner rounding, radius and glue scraping, and buffing units. Servo adjustment of the feeding fence and the trimming and scraping units gives fast, repeatable changeovers and a clean, polished edge at 14 m/min.

Request a quote



Financing available


Apply Now.

14 m/min
Feeding Speed
0.4–3 mm
Edge Thickness
12–50 mm
Panel Thickness
XP-864 SERVO

Would you like to request a quote?

Our Compact Series Edgebander experts are ready to help you choose the ideal model for your production needs — with guidance tailored to your workflow, budget, and material requirements.
Request a Quote
Contact Us
Panel Length
Min.70mm
Working Pressure
0.6Mpa
Panel Width
Min.80mm
Feeding Speed
14m/min
Panel Thickness
12–50mm
Edge Thickness
0.4–3mm

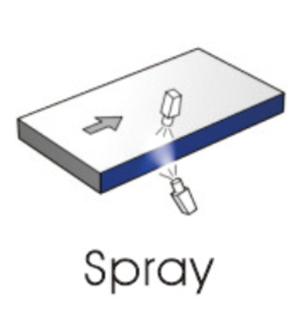

Spray

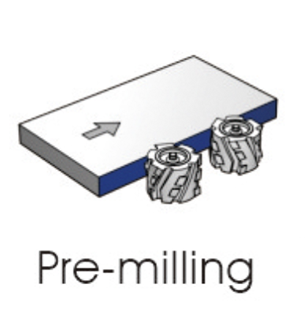

Pre-milling

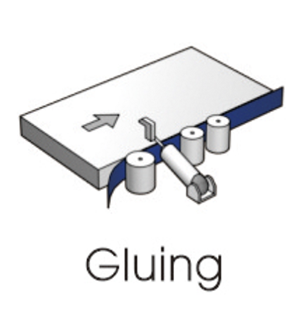

Gluing

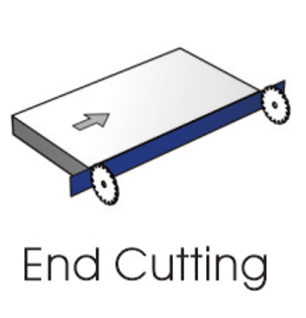

End Cutting

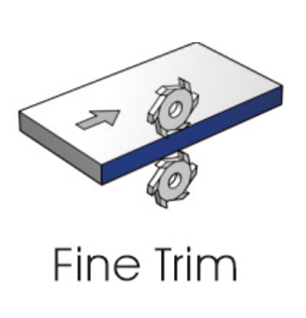

Fine Trim

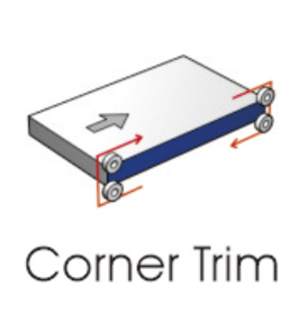

Corner Rounding

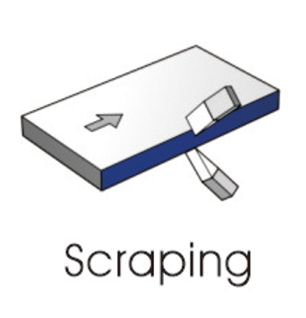

Radius Scraping

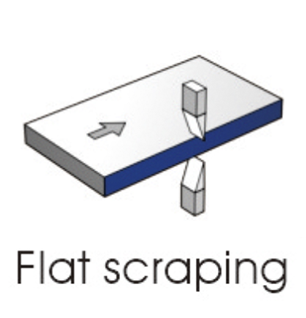

Glue Scraping

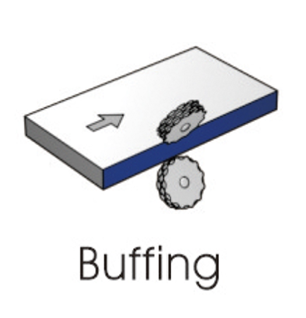

Buffing
