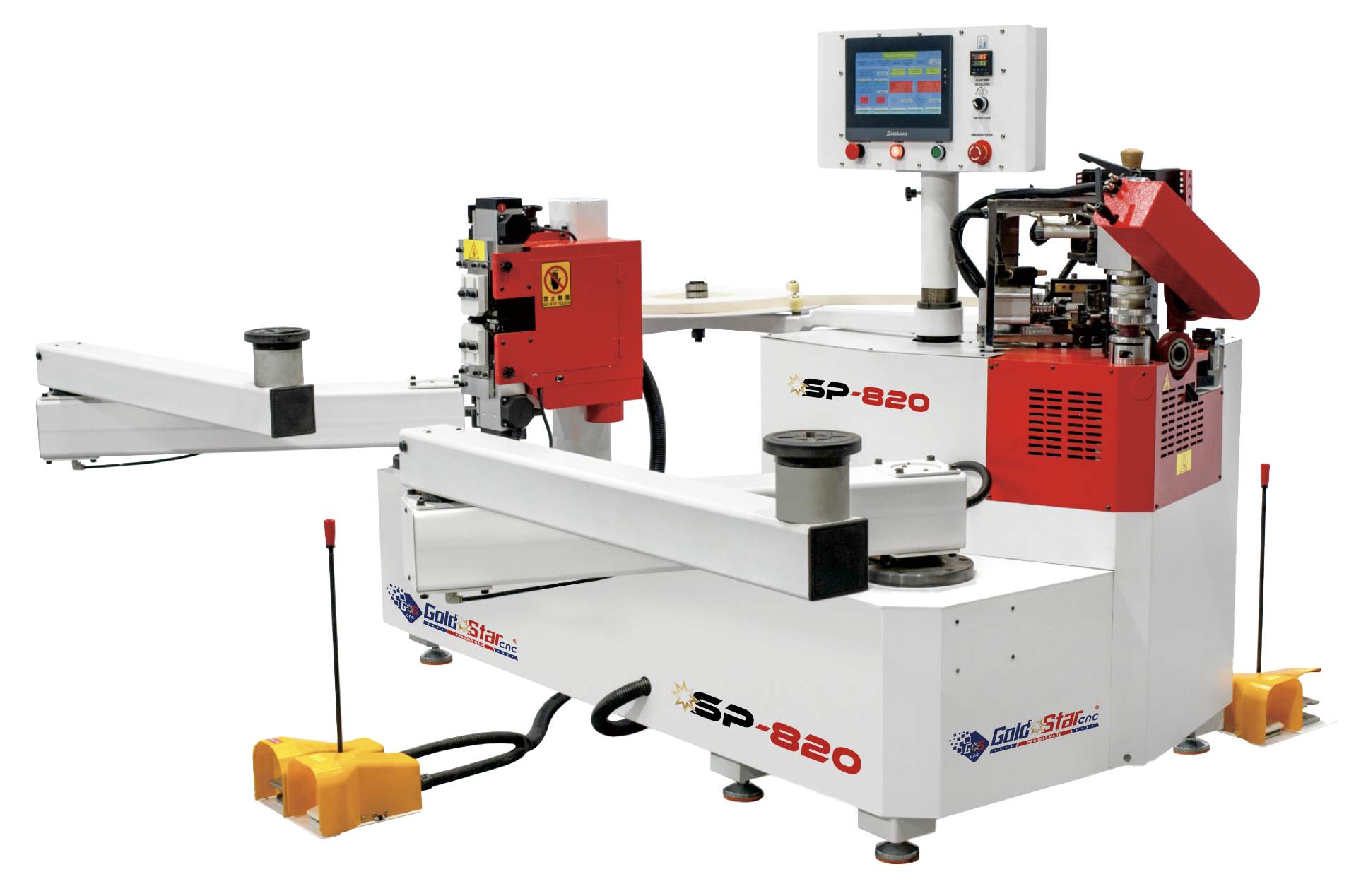

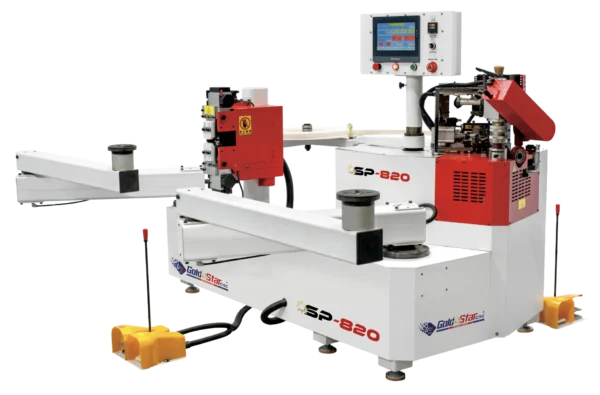

SP-820
EDGE BANDER
AUTOMATIC EDGE BANDER

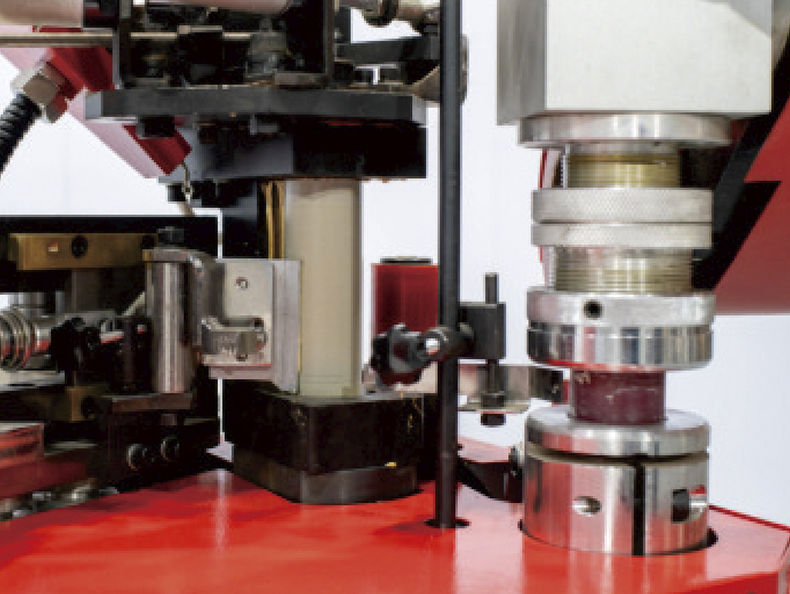

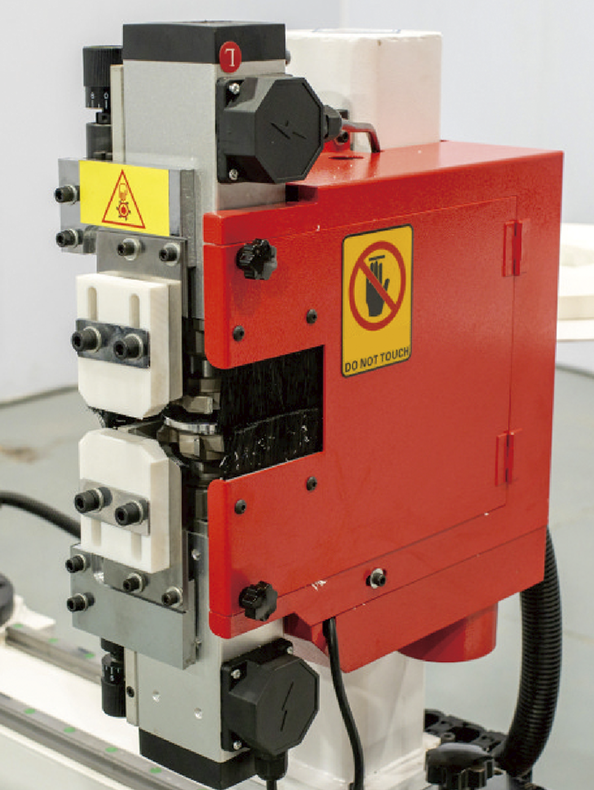

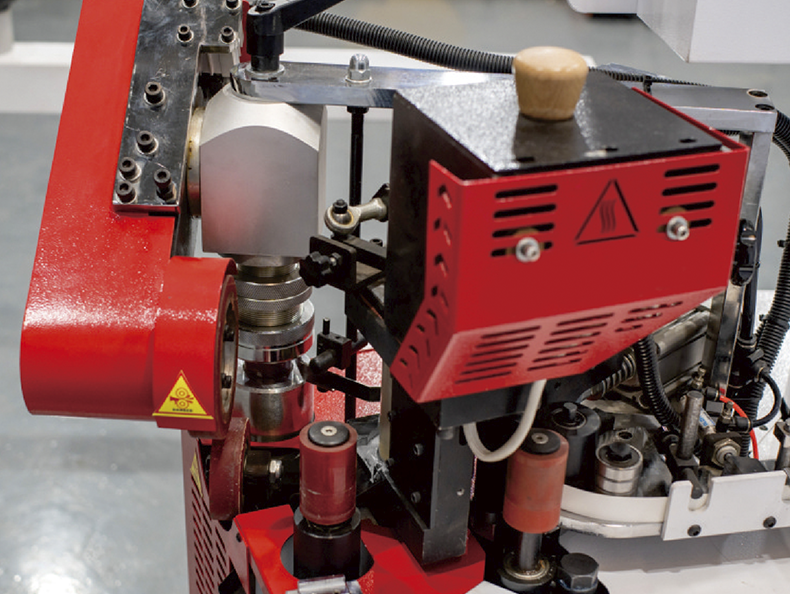

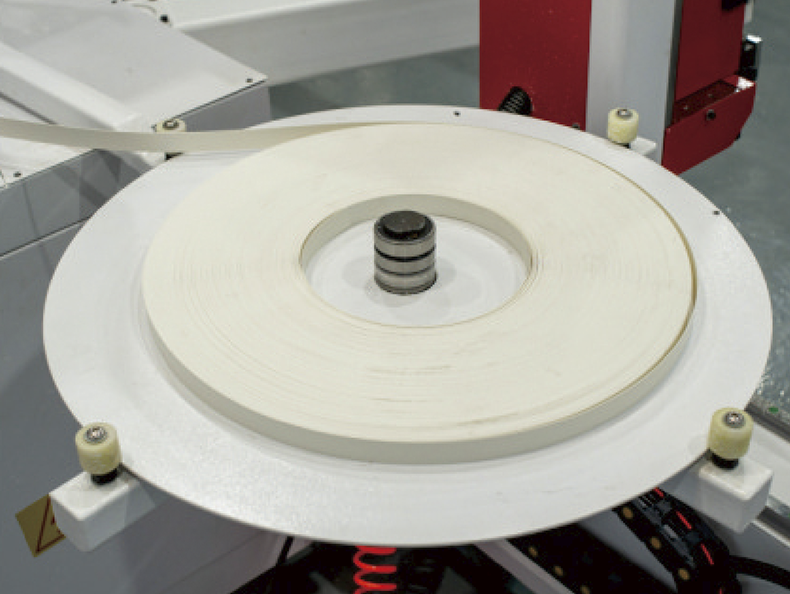

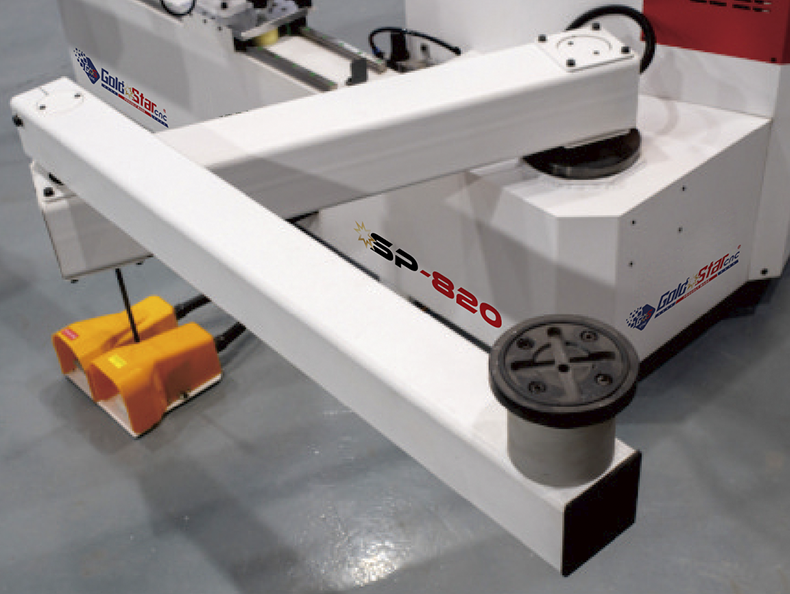

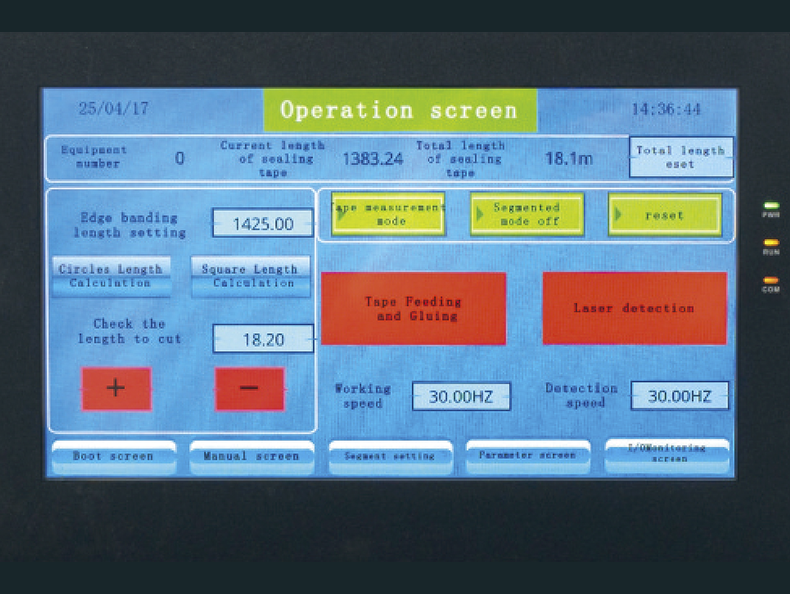

Download CatalogThe SP-820 delivers flawless edge banding for curved surfaces with its laser detection system and all-in-one gluing and trimming unit. Its touchscreen interface, adaptive arm, and stable edge tray provide precision, flexibility, and control for professional results every time.
-
650 KG
N.W
N.W
4KW
Power
Power
21 00 x 1500 x 1700mm
Power
Power
Would you like to request a quote?
Our Compact Series Edgebander experts are ready to help you choose the ideal model for your production needs — with guidance tailored to your workflow, budget, and material requirements.
Panel length
Min.200mm
Working pressure
0.6–0.8Mpa
Panel width
Min.300mm
Power
4KW
Panel thickness
9–50mm
N.W
650kg
Edge thickness
0.6–3mm
Packing size
2100 x 1500 x 1700mm
Feeding speed
5–8m/min
