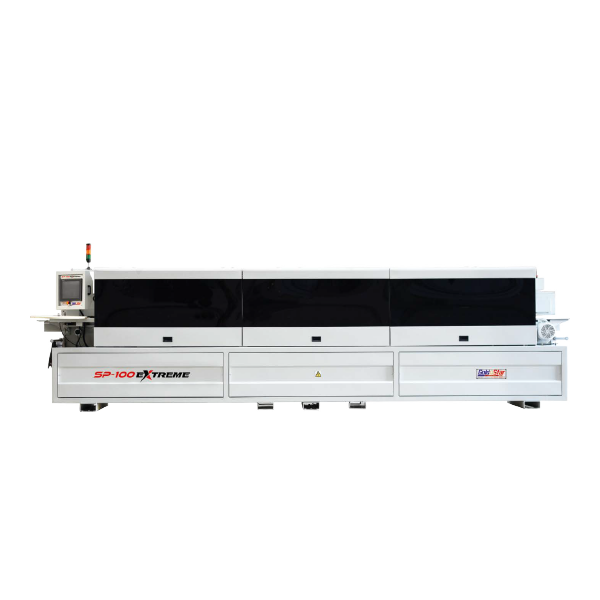

Edge Bander SP 100 EXTREME (16 Unit)
Edge Bander SP 100 EXTREME (16 Unit)
GENERAL INFORMATION
FULL AUTOMATIC SERVO SYSTEM EDGE BANDING (16 UNIT)
Enhance the quality and efficiency of your furniture and panel production process with this exceptional edge banding machine.
- Automatic top-bottom milling.
- Automatic rounding for greater precision.
- Automatic radius scraping and flat scraping.
- Automatic guide, and pre-milling (DIA).
- Horizontal grooving (jumping).
- Perpendicular grooving for superior versatility.
Finance For As Low As $250/mo. Apply Now.
Edge Bander SP 100 EXTREME (16 Unit)
Key Features:
- Dimensions: Lenght – 236 IN, Width – 31 1/2 IN, Height – 62 IN, Weight (average) – 5000 lb.
- Glue heating time (Average): 20 minute.
- Squeeze thickness: 0.015 X 0.125 IN.
- Squeeze height: 2.4 IN.
- Part Dimensions to be Squeezed: 4 3/4 X 5 15/16 IN.
- Operating speed (per minute): 60 FT x MIN.
- Pre milling engine speed: 12.000 rpm.
- Front-end cutting engine speed: 12.000 rpm.
- Front-end cutting saws: 80x20.
- Milling engine speed (per minute): 12.000 rpm.
- Milling knife: 6 blades R3.
- Trim motors X3: 12.000 rpm.
- Trim blades: 6 blades R3.
- Radius scraping: R3.
- Polishing engine speed: 3.000 rpm.
- Grooving saw engine speed: 12000 rpm.
- Grooving saw: 3.54 X 0.35 IN.
- Electric power: 50 HP / 72 Amperage.
- Reducer Speed (Per minute): 14/18 rpm.
- Pneumatic bar pressure: 6 PSI.
- Glue tank volume: 3 kgs.
$67,460.00
-
