M2000 Hybrid UV-LED Print

Request a Quote

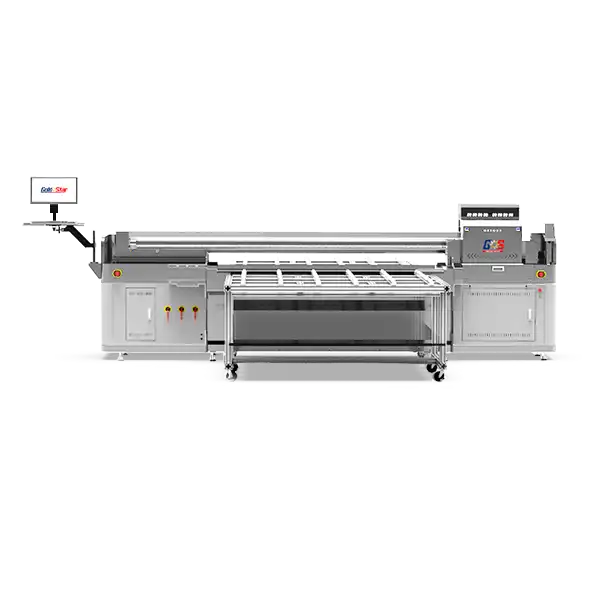

M 2000 LARGE FORMAT PRINTER GOLDSTARCNC

M2000 Hybrid UV-LED Print

Request a Quote
GENERAL INFORMATION

The M2000 Hybrid UV-LED Printer with VSDT technology and Toshiba CE4M print head delivers ultra-high-quality prints with ink droplets ranging from 5 to 42 picoliters. It is compatible with both roll and rigid media, with a maximum width of 86.6142 in and thickness up to 3.937 in. The printer features a media guide system for both X and Y axes, as well as automatic infrared media detection.

Download Catalog
Request a Quote
M2000-Hybrid-UV-LED GoldStar CNC Printer
M 2000 LARGE FORMAT PRINTER GOLDSTARCNC
Request a Quote
Contact Us

Finance For As Low As $250/mo. Apply Now.

M2000 Hybrid UV-LED Print

The M2000 prints with LED-UV curable inks in 7 colors, including white for brighter and more vivid images on transparent and colored substrates. High-speed data communication is ensured through 1.25 G high-speed fiber optics. System requirements for the NESTCAM Printmon software include Windows 10, 8.1, or 7, at least 2 GB of RAM, 40 GB of free disk space, and an internet connection.

Key Features:

  • Print Head: Toshiba CE4M.
  • Acceptable Media Width: Roll media: max 86.61 in.
  • Thickness: Roll / Rigid or cut sheet media: Maximum 3.937 in.
  • Weight: Roll media: Maximum 220 lb / Rigid or cut sheet: Maximum 110 lb/sqft.
  • Roll outer diameter: Maximum 12.6 in.
  • Core diameter:  3 in / 2 in.
  • Media take-up system: Maximum 12.6 in outer diameter Maximum 220 pounds weight.
  • Printing width: Maximum 82.7 in.
  • Printing width: 82.7 in.
  • Maximum Printing Speed: 215 sqft./hr. in CMYK/CMYKLcLm mode.
  • Ink Bottles
    • Type: LED-UV Curable inks.
    • Capacity: 1500 ml (± 100 ml).
    • Colors: 7 colors (Cyan, Magenta, Yellow, Black,Light Magenta, Light Cyan White ).
    • Configuration: CMYK,CMYK+LcLm,CMYK+White, CMYK+White+White, CMYK+LcLm+White.
  • Ink curing unit: Dual UV LED Lamps, Fan Cooling.
  • Printing resolutions: 360x720 dpi, 360x1080 dpi, 720x1440 dpi, 1440x1440 dpi.
  • Interface: USB 3.0.
  • Power-saving feature: Automatic sleep feature.
  • Power Supply: Voltage and frequency AC 220 V ± 10%, 50/60 Hz.
  • Required power capacity: Maximum 20 A.
  • Power Consumption:
    • During operation: Maximum 1500W.
    • Standby mode:  200 W.
  • Dimensions (with stand):
    • Weight (with stand) Without table unit: 1322 lb / With table unit: 2425
  • Environmental:
    • Power ON Temperature: 68° to 90°F (72°F or more recommended) / Humidity: 35 to 80% (no condensation).
    • Power OFF Temperature: 41° to 104°F / Humidity: 20 to 80% (no condensation).



GOLDSTAR CNC Printmon System Requirement:

  • Operating system:
  • Windows® 10 (32/64-bit).
  • Windows® 8.1 (32/64-bit).
  • Windows® 7 Professional / Ultimate (32/64-bit).
  • CPU: Intel® Core™2 Duo, 2.0 GHz or faster recommended.
  • RAM: 2 GB or more recommended.
  • Video card and monitor: A resolution of 1,280 x 1,024 or more recommended.
  • Free hard-disk space: 40 GB or more recommended.
  • Hard-disk file system: NTFS format.
  • Optical drive: DVD-ROM drive.
  • Other requirements:
    • Ethernet or USB port.
    • Internet connection and web browser to NESTCAM Registration.

$77,155.80

-
