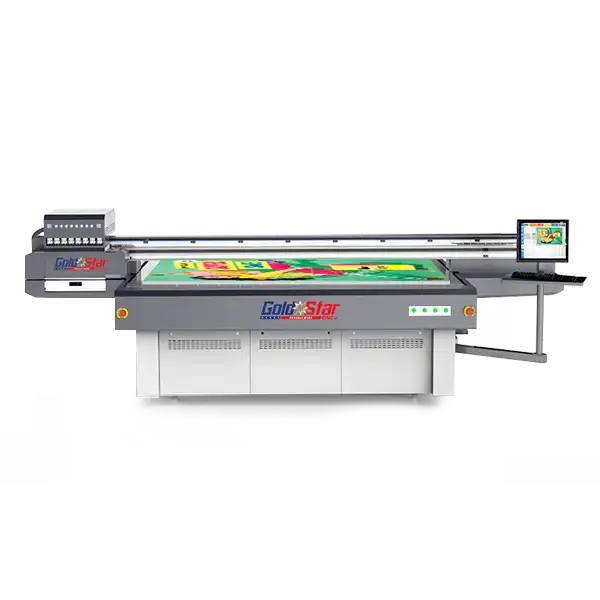

X2513 LARGE FORMAT PRINTER GOLDSTARCNC

Goldstar X2513

Request a Quote
GENERAL INFORMATION

Large Format Industrial Flatbed Led UV Printer

Proven digital printing technology and VSDT variable droplet printing technology for the highest print quality and sharpest images. The GoldStar X2513 high-speed large format flatbed LED UV printer expands your business. This UV Flatbed printer enables high-quality direct printing on almost any kind of rigid surface, including wood, glass, leather, ceramic tiles, acrylic, cardboard, decorative materials, and many more. The printing speed reaches up to 667.57 ft2/h. This UV flatbed printer provides an excellent return on investment while expanding your business.

Download Catalog
Request a Quote
X2513 LARGE FORMAT PRINTER GOLDSTARCNC
Request a Quote
Contact Us

Finance For As Low As $250/mo. Apply Now.

Goldstar X2513

Key Features:

  • MODELS: X2513.
  • Print Head: Ricoh GEN5/GEN6/KM1024i.
  • Number of print heads: 3-8.
  • Acceptable media
    • Height: up to 5.9 in.
    • Weight: 110.2 lb/ft2, non concentrated load.
  • Printing size: 98.4*51.2 in.
  • Types: Almost any kind of rigid surface, including wood, glass, leather, ceramic tiles, metal and many more.
  • Inks
    • Types: UV Curable.
    • Color: CMYK+W+V/CMYK+LC LM+W+V/CMYK+W.
    • Ink Capacity: 5L Large Bulk System with automatic supply system.
    • Dimensions: 98.4*51.2 in.
    • Ink curing system: Doul UV LED Lamps.
  • Printing Resolution (dots per inch): Maximum 3600 dpi.
  • Interface: High Speed USB-3.0/ Lan port.
  • Power-saving feature: Automatic sleep feature.
  • Power supply
    • Voltage and frequency: AC 220 V ± 10%, 50/60 Hz.
    • Required power capacity: Maximum 20A.
    • Power Consumption
    • During operation: Maximum 8500W.
    • Standby mode: 200 W.
  • Printer Dimensions
    • Machine(L*W*H): 168.4*82.7*57.9 in.
    • Package(L*W*H): 185*84.6*78.7 in.
  • RIP software: MainTopRip6.1/PP.
  • Weight (with stand): G.W: 4078.547 lb N.W: 2735.93 lb.
  • Environmental
    • Power ON Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 40 to 60%.
    • Power OFF Temperature: 41° to 104°F (5° to 40°C) / Humidity: 20 to 80% (no condensation).
  • Maximum Speed Ricoh GEN5 (3-8pcs): Ricoh GEN6(3-8pcs) i3200-U (3-4pcs).
  • Production (4pass) 688.896 ft²/h: 882.648 ft²/h 538.2 ft²/h.
  • Quality (6pass) 473.616 ft²/h: 731.952 ft²/h 387.504 ft²/h.
  • Hi-Quality (8pass) 365.976 ft²/h: 473.616 ft²/h 269.1 ft²/h.



Printlinks System Requirements:

  • Operating system: Windows® 7/10 (64-bit).
  • CPU: Intel® Core™ 8, 4.0 GHz or faster recommended.
  • RAM : 8 GB or more recommended.
  • Video card and monitor. A resolution of 1,280 x 1,024 or more recommended.
  • Free hard-disk space: 80 GB or more recommended.
  • Hard-disk file system: NTFS format.
  • Optical drive: DVD-ROM drive.
  • Other requirements: Ethernet or USB port / Internet connection and web browser to software Registration.

$57,063.55

-
