GOLDSTAR X1613

Request a Quote

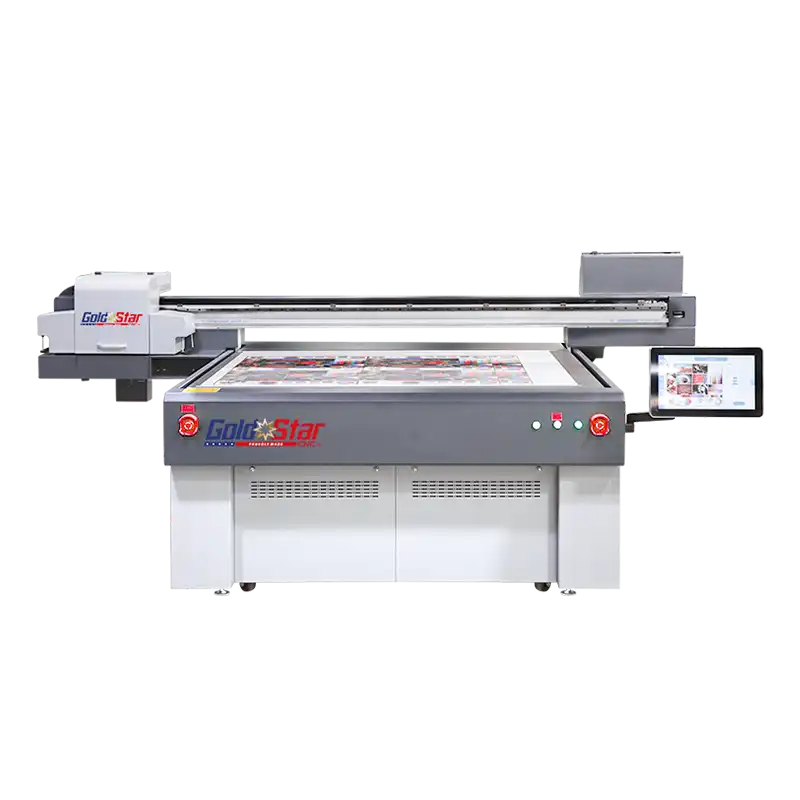

X1613 LARGE FORMAT PRINTER GOLDSTARCNC

GOLDSTAR X1613

Request a Quote
GENERAL INFORMATION

The Perfect LED UV Flatbed Printer for Businesses Seeking Superior Image Quality

GOLDSTAR X1613 is the true LED UV flatbed printer that offers sharp image quality thanks to its 2.5pl variable droplet technology. This versatile machine is capable of printing directly on a wide range of rigid surfaces like wood, glass, leather, and ceramics at a printing speed of up to 38 square meters per hour.

Download Catalog
Request a Quote
GOLDSTAR-X1613 Large Printer
GOLDSTAR-X1613 Large Printer
X1613 LARGE FORMAT PRINTER GOLDSTARCNC
Request a Quote
Contact Us

Finance For As Low As $250/mo. Apply Now.

GOLDSTAR X1613



Key Features:

  • Print Head: Ricoh GEN5/GEN6/Epson i3200-U1.
  • Number of print heads: 3-8.
  • Fabric:
    • Dimensions: 93*51.2 in.
    • Height Max: 3,937 in.
    • Weight: 10.24 lb/ft².
    • Printing size: 93*51.2 in.
  • Types: Almost any kind of rigid surface, including wood, glass, leather, ceramic tiles, Metal and many more.
  • Inks
    • Types: UV Curable.
    • No. of Colors: CMYK+W+V/CMYK+LC LM+W+V/CMYK+W.
    • Ink Capacity: 5L Large Bulk System with automatic supply system.
    • Ink curing system: Doul UV LED Lamps.
    • Printing Resolution (dots per inch): Maximum 3600 dpi.
    • Interface: High Speed USB-3.0/ Lan port.
  • Power Supply
    • Power-saving feature: Automatic sleep feature.
    • Voltage and frequency: AC 220 V ± 10%, 50/60 Hz.
    • Required power capacity: Maximum 20A.
  • Power Consumption
    • During operation: Maximum 8500W.
    • Standby mode:  200 W.
  • Printer Dimensions: Machine (L*W*H): 126*82.7*57.9 in / Package(L*W*H): 141.7*84.6*78.7 in.
  • RIP software: MainTopRip6.1/PP.
  • Weight (with stand): G.W:1350KG N.W: 920KG.
  • Environmental
    • Power ON: Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended) / Humidity: 40 to 60% (no condensation).
    • Power OFF: Temperature: 41° to 104°F (5° to 40°C) / Humidity: 20 to 80% (no condensation).
  • Maximum Speed Ricoh GEN5 (3-8pcs): Ricoh GEN6 (3-8pcs) Epson i3200-U1(3-4pcs).
  • Production(4pass) 645.84 ft²/h: 839.592 ft²/h 538.2 ft²/h.
  • Quality(6pass) 430.56 ft²/h: 559.728 ft²/h 387.504 ft²/h.
  • Hi-Quality(8pass) 322.92 ft²/h: 430.56 ft²/h 269.1 ft²/h.



Printlinks System Requirements:

  • Operating system: Windows® 7/10 (64-bit).
  • CPU: Intel® Core™ 8, 4.0 GHz or faster recommended.
  • RAM: 8 GB or more recommended.
  • Video card and monitor: A resolution of 1,280 x 1,024 or more recommended.
  • Free hard-disk space: 80 GB or more recommended.
  • Hard-disk file system: NTFS format.
  • Optical drive: DVD-ROM drive.
  • Other requirement:
    • Ethernet or USB port.
    • Internet connection and web browser to software Registration.

$47,419.00

-
